Multi-Band LTE-FDD/LTE-TDD/HSPA+/UMTS/EDGE/GPRS/GSM Module LTE CAT4 Mini PCIE SIM7600A-H

Product Description

Product Description

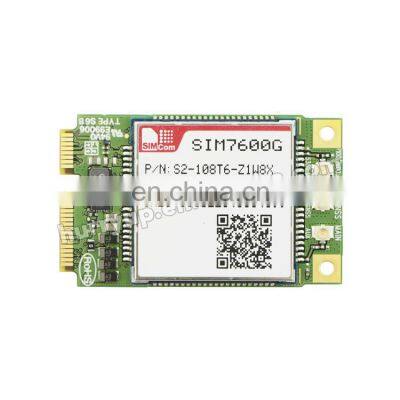

DescriptionSIM7600A-HSIM7600X-H-PCIE is a complete multi-band LTE-FDD/ LTE-FDD/ HSPA+/ UMTS/ EDGE/ GPRS/ GSM module solution in Mini PCIE type which supports LTE CAT4 up to 150Mbps for downlink and 50Mbps for uplink data transfer. It is combined with a SIM7600X-H (LCC) module and a Mini PCIE adapter board.-Variant for EMEA/Korea/ThailandSIM7600E-H-PCIE•LTE-TDD B38/B40/B41•LTE-FDD B1/B3/B5/B7/B8/B20•UMTS/HSPA+ B1/B5/B8•GSM/GPRS/EDGE B3/B8-Variant for North AmericaSIM7600A-H-PCIE•LTE-FDD B2/B4/B12•UMTS/HSPA+ B2/B5SIM7600V-H-PCIE:•LTE-FDD B2/B4/B5/B13-Variant for Australia/New Zealand/South AmericaSIM7600SA-H-PCIE•LTE-TDD B40•LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28•UMTS/HSPA+ B1/B2/B5/B8•GSM/GPRS/EDGE 850/900/1800/1900MHz-Variant for JapanSIM7600JC-H-PCIE•LTE-FDD B1/B3/B8/B18/B19/B26-General features•Mini PCIE package•Control Via AT Commands•Supply voltage range: 3.0V~ 3.6V, 3.3V Typical•Operation temperature: -40℃ to +85℃•Dimension: 50.8*31*5.35mm•Weight: 12.6g•Bandwidth: 1.4/3/5/10/15/20MHz•3GPP E-UTRA Release 11-Specifications for Data transfer•LTE CAT4- Uplink up to 50Mbps- Downlink up to 150Mbps•HSPA+- Uplink up to 5.76 Mbps- Downlink up to 42 Mbps•UMTS- Uplink/Downlink up to 384Kbps•EDGE- Uplink/Downlink up to 236.8Kbps•GPRS- Uplink/Downlink up to 85.6Kbps-Other features•USB Driver for Microsoft Windows2000/XP/Vista/ Win7/Win8/Win10•USB Driver for Linux /Android•RIL supporting for Android 2.4/4.0/5.0/6.0/7.0•MBIM to Win8•Firmware update via USB•TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/ HTTP/HTTPS/ SMTP/SMTPS/DNS•SSL3.0/TLS1.0/TLS1.2•DTMF (Sending and Receiving)•Audio Playing•USB Audio and VoLTE•FOTA•eCall*-Interfaces•USB2.0 with High speed up to 480Mbps•UART•GPIO•Antenna: DL MIMO, Support Rx-diversity/GNSS active antenna•(U)SIM card (1.8V/3.0V)•Digital Audio through PCM (Optional)•Analog Audio (Optional)•Embedded SIM card socket (Optional)•GNSS: GPS/GLONASS/Beidou/Galileo*-Approvals•RoHS Compliant•CE(SIM7600E-H/SIM7600SA-H* Mini PCIE)•FCC/PTCRB/AT&T*(SIM7600A-H Mini PCIE)•FCC*/GCF*/Verizon* (SIM7600V-H Mini PCIE)•ACMA* (SIM7600SA-H Mini PCIE)•JATE/TELEC(SIM7600JC-H Mini PCIE)*Under Development/TestingWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
