Product Description

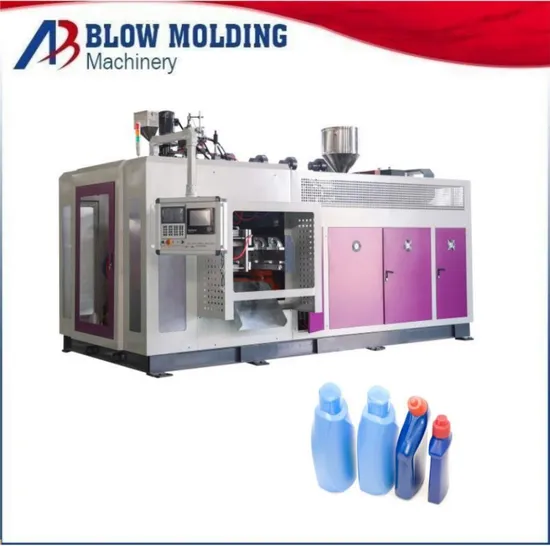

Automatic bottle making machine
Model No.: ABLB75(Double station single die head)
ABLB75 full automatic bottle making machine was specially designed for making plastic water bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic containers not over 5L. This design is low power consumption and very stable.
The features of this machine:
(1)It is suitable for producing PE, HDPE, PP, PVC, PETG, PS so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 5L.
(2)Single station single die head design, very easy to operate and maintenance.
(3)Most components of the blow moulding machine are from famous world brand.
(4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance.
Product Parameters
Technical Parameters: ( ABLB75II)

Max.product volume	8L
Dry cycle	750*2PC/H
Screw diameter	75MM
Screw L/D ratio	24L/D
Screw drive power	22KW
Screw heating capacity	7-8 KW
No.of heating zone	4ZONE
Out put of HDPE	100KG
Oil pump drive power	7.5KW
Clamping force	80KN
Max.size of mold	400*430MM
Template size	380*420MM
Mold stroke	170-520MM
Max.die diameter	170MM
Blow pressure	0.6MPA
Air volume	0.8M3/MIN
Cooling water pressure	0.3MPA
Water consumption	80L/MIN
Size of machine	4.2*2.2*2.7
Weight of machine	7.5TON

FAQ
1. Q: -Can the machine customized only for my products?
A: - Yes, most APOLLO machines can be customized as per clients' requirements, including the structure special design and brand of parts special request.
2. Q: -How about the molds ?
A: - APOLLO has its own mold manufacture company for injection and blowing mold. Machine and mold can be tested for samples and smooth matching before shipping. Mold raw material is various for optional.
3. Q: -What is the business item for this project ?
A: - a. Delivery Date: within 45 working days after receive the deposit and samples or drawing confirmed by buyer and APOLLO .
b. Port of Loading: SHANGHAI, CHINA.
c. Payment: 30% TT deposit, balance before shipment or 100% irrevocable L/C at sight.
d. Container needed: One 20GP container.
