Basic Info.
Model NO.
hldtest machina 001
Usage
Auto Steering Testing Machine
Outlet Diameter
0.1-1.2mm
Input Torque
Range+-50nm Accuracy Class 0.5%
Rack Load
Range +-10000naccuracy Class 0.5%
Inout Angle
Accuracy Class 0.018
Rack Stroke
Range 300mm.Accuracy Class 0.005mm
Major Test Items
Gradual Rotational Torque
Reverse Transmission Torque
Torque Sensor Signal Characteristics
Speed
Current Characteristics
Input
Output Torgue Characteristic
Transport Package
Neutrual Packing
Specification
HUALUDE TEST MACHINE 01
Production Capacity
100PCS Per Week
Product Description
C-EPS leave factory performance test machine

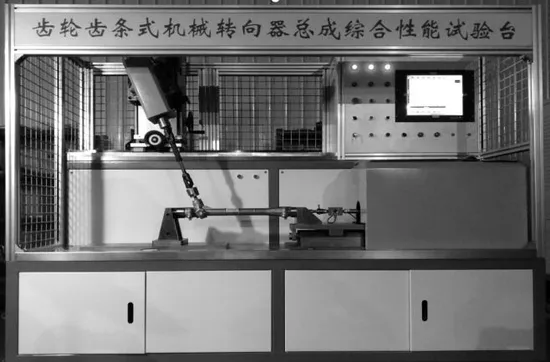

rack and pinion auto steering ASSY comprehensive performance testing machine
rack and pinion HPS comprehensive performance test machine
cycle ball auto steering ASSY comprehensive performance test machine
recirculating ball HPS comprehensive performance test machine
power steering pump comprehensive performance test machine
Input torque: | range ±50N.m,accuracy 0.5%; |
Rack load | range ±15kN, accuracy 0.5% |
Pressure | range 20MPa, accuracy 0.5%; |
Flow | range 25L/min, accuracy 0.5%; |
Input rotational angle | accuracy 0.018°; |
Repeated test error | ≤5% |
lead time | 30days |
| |
Major test items: Gradual rotational torque ( power, no power) Reverse transmission torque (points have power, no power) Torque sensor signal characteristics Speed/current characteristics Input/output torque characteristic Major data precision index: Input torque :range ±50Nm, Accuracy class: 0.5%; Rack load:range ±10000N, Accuracy class: 0.5%; Input angle:range Unlimited, Accuracy class: 0.018°; Rack stroke:range 300mm, Accuracy class: 0.005mm. Major test items: Total turns of steering gear; No-load rotation torque; Free clearance; Steering effort(torque with load); Torque-pressure characteristic ; sensitivity test; Internal leakage test; Outernal leakage test; Return ability test; Input/output characteristic; Input/output transmission ratio; Pressure difference test. draining Major data precision index: Input torque: ±50N.m, Accuracy 0.1%; output torque: Range ±2000N.m,Accuracy 0.5%; Input rotational angle : Range Unlimited Accuracy 0.018°; Output rotational angle: Range Unlimited Accuracy 0.018°. Major test items: Total turns of steering gear; No-load rotation torque; Free clearance; Steering effort(torque with load); Torque-pressure characteristic ; sensitivity test; Internal leakage test; Outernal leakage test; Return ability test; Input/output characteristic; Input/output transmission ratio; Pressure difference test. draining Major data precision index: The highest pressure test Run-in test Flow test(no-pressure & pressure) efficiency test Pressure switch characteristic test
