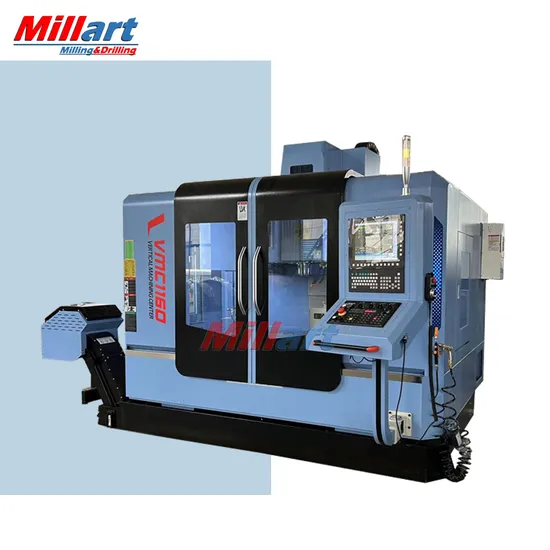

Factory Direct Supply High Accuracy 3-Axis 4-Axis 5-Axis Vmc1160 Vertical Machining Center

Product Description

Product Description:
Feature : 1. Resin sand casting, Meehanite HT-300;
3. X, Y, Z rails adopt stainless steel telescopic cover;
4. Roller type linear guideway from Taiwan
5. Ball lead screw from Taiwan
6. Standard with belt driven spindle, optional for direct driven spindle;
7. Taiwan pneumatic cylinder;
8. Taiwan ATC, umbrella type and disc type are available;
9. Import bearings for leadsrews;
10. Import coupling;
11. Headstock Nitrogen balance system as option;
12. Full enclosed cover;
13. Rigid tapping;
14. Spindle center ring blast;
15. Work lamp;
16. Pilot lamp;
17. USB and Internet interface;
18. Manual pulse generator (MPG);
19. Centralized automatic lubrication system.
20. Cooling system.
21. Heat exchanger for electrical cabinet ;
22. Leveling blocks & bolts;
23. Toolbox and tools;
24. CNC controller: KND,GSK, HNC (China); SIEMENS, FANUC, MITSUBISHI, FAGOR, etc.
Technical parameter :

Item	Unit	VMC1160
X axis travel	mm	1100
Y axis travel	mm	600
Z axis travel	mm	600
Spindle nose to worktable	mm	120-720
Spindle center to column	mm	650
Leadscrew diameter X,Y,Z	mm	Φ40
Linear guideway width X,Y,Z	mm	45/45/45(Roller)
Worktable Length	mm	1200
Worktable width	mm	600
Max loading capacity	kg	800
T-slots(NO./width/pitch)		5*18*100
Spindle taper		BT40-150
Spindle speed	rpm	8000
Main motor power	kw	11/15
Fast moving speed (X/Y/Z)	m/min	36/36/30
Cutting speed	mm/min	1-10000
Feed motor torque	N/M	22/22/22
Feed motor power	kw	3.0/3.0/3.0
Capacity	pcs	Arm type 24
Max tool diameter	mm	120
Max tool weight	kg	8
Max tool length	mm	300
Positioning accuracy	mm	0.008
Repeat accuracy	mm	0.005
Length	mm	3300
Width	mm	2400
Height	mm	3000
Weight	kg	6300

Standard accessories: Fanuc 0i MF CNC control system,
High speed spindle 8000 rpm from Taiwan ,
16 tools ATC from Taiwan,
3-Axis linear guideway from Taiwan,
Full-cover protection,
Work lamp,
Tri-color indication lamp,
Coolant system,
Auto-lubrication,
Movable pulse generator,
Air gun,
Heat exchanger
Optional accessories:
24 tools ATC from Taiwan
Automatic chip conveyor& chip bucket(Chain type)
Automatic chip conveyor& chip bucket(Screw type)
Spindle center water spray
Spindle 12000rpm(direct coupling)
Spindle Oil cooler
Nitrogen balance system
Air conditioner for electricity cabinet
4th or 5th Axis
