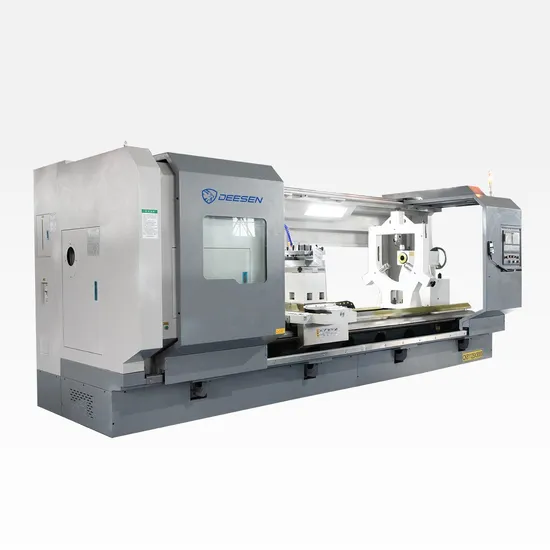

Large Flat Bed CNC Turning and Cutting Machine, CNC Horizontal Lathe Machine Center

Product Description

Large flat Bed CNC Turning and Cutting Machine, CNC Horizontal Lathe Machine Center
Product Description

Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the WEWOO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.
Laser Interferometer Testing Equipment Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the WEWOO MACHINE.
CK series CNC Lathe machine is and economical, practical type machine tools with good quality.The machine has a very wide use which is suitable for internal and external turning, tapering, circular arc, thread, boring, reaming of axis and disk workpiece. It also can achieve non-circular curve machining. You can choose the CNC system and optional accessories according to your requirement
Product application:
Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face ,such as processing ,and also can process the single and multiple threads in metric ,inch and other standards.
The main performance characteristics:
CNC lathe features
1. A high strength ,widening the carriage ,suitable for heavy cutting
2. Four position electric turret
3. Frequency conversion stepless speed regulation
4. Standard configuration: manual chuck
5. Optional configuration: hydraulic chuck
Product main technical specifications:

Item	CK61125
Maximum rotary diameter of the bed	1250mm
Servo motor	23nm, 15nm
Maximum rotary diameter on the knife holder	850mm
X medium dragboard width	420mm
Width of the guide rail	700mm
End of spindle	ISO(GB)D11/A2-11
Spindle through hole diameter	105 (thickened)/130mm
Spindle speed	30-84 / 53-150 / 125-350 / 300-835
Spindle	Manual shift four gears
Drag board Z to the minimum moving unit	0.001mm/min
Drag board X to the smallest moving unit	0.0005mm/min
Dragboard Z-way-trip	1000mm/1500mm/2000mm/3000mm/4000mm/5000mm/6000mm
Dragboard X-way trip	650mm
X-phase positioning accuracy	0.015mm
Z-phase positioning accuracy	0.02mm
X-phase repeated positioning accuracy	0.01mm
Z-phase repeated positioning accuracy	0.01mm
Maximum processing length	850mm/1350mmmm/1850mmmm/2850mmmm/3850mmmm/4850mm
Dragboard X/Z fast movement speed	6000mm/min
Tail seat sleeve diameter	130mm
Tail seat sleeve cone hole	Mo's No. 6
Maximum stroke of the tail seat sleeve	250 mm
Main motor power	22kw
Repeat positioning accuracy of electric knife holder	0.002mm
Weight of the whole machine	6.2T/6.8T/7.4T/8.5T/9.6T/11T/12.5T
Appearance size (mm) H*W*L	2350*2350*3500mm(4000mm/4500mm5500/6000mm/6500mm/7000mm)

Product standard configuration:

No.	Specifications	Number	Standard configuration
1	Numerical control system	1/set	Wide GSK980/ servo (optional)
2	Chuck	1/set	Manual three jaw chuck K11 250
3	Tailstock	1/set	Manual tail base
4	X -ball screw	1/set	PRC
5	Z -ball screw	1/set	PRC
6	Electric turret	1/set	LD4B-A(6150)
7	X,Z-Lead screw bearing	1/set	PRC
8	X,Z- Coupling	1/set	PRC
9	Spindle bearing	1/set	PRC
10	Fuselage Casting	1/set	High quality resin sand casting
11	Spindle assembly	1/set	Assembly spindle
12	Spindle clamping		Manual chuck
13	Paint	1/set	Color can be configured according to customer requirements, not special requirements according to our standard color configuration
14	Lubrication	1/set	Joint venture (electric lubricating oil pump, lubricating oil circuit is installed)

Detailed Photos
PRECISION CHUCK
Standard with Manual chuck,Optional:hydraulic chuck or pneumatic chuck.
TOOL POST/TURRET
Standard with 4 staion electrictool
post ,6/8 station electric turret is optional.
QUENCHINGMACHINE GUIDE
Super audio quenching guiderail harder;400mm bed width.

SPINDLE
52/80/103 spindle hole,manual 3gears speed ,suitable for powercutting;
independent spindle is optional
TAILSTOCK
Standard with manual tailstock, Optional:Hydraulic or pneumatic type tailstock.
CNC CONTROLSYSTEM
Standard :GSK ,
Optional :Siemens,Fanuc,Syntec, Mitsubishi and others.
