Quietest/Noiseless Textile Testing Equipment Martindale Abrasion and Pilling Tester Price Yg401e-4

Product Description

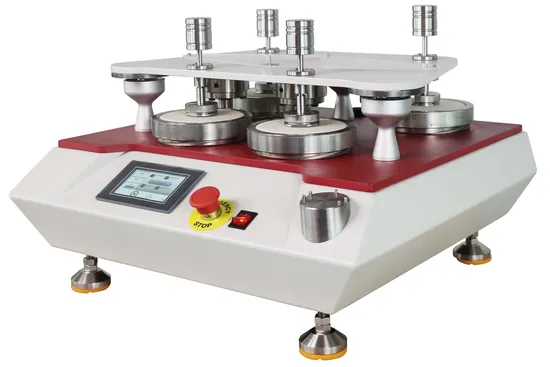

Martindale Abrasion and Pilling Tester YG401E
Aplication Used for measuring the wear resistance, pilling and surface changes of woven, knitted, fluffy, coated, and nonwoven fabrics.
Standards
Wear-resisting:GB/T 21196.2,GB/T 13775,ISO 12947,ISO 17704,ISO 5470-2,ASTM D 4966,IWS TM 112,BS 2543,BS 3424-24,BS 5690,M&S P19,Next 18,SN 198529,TWC 112,JIS L 1096
Pilling :GB/T 4802.2,ISO 12945-2,ASTM D 4970,IWS TM 196,M&S P17,Next TM 26,SN 198525
Features
*Standard Lisharu curve: strictly ensure that the size curve meets the standard requirements (factory standard curve correction pen)
*The heavy hammer and key components are made of stainless steel, with beautiful appearance and durability.
*The pressing plate is made of special aluminum alloy, ensuring that it is not easy to deform after long-term use.
*Needle roller bearings reduce the friction force on the guide rod. Each table top is formed by a CNC grinding machine at one time, ensuring that each station is on the same plane and that the test results at each station are consistent.
*The speed setting range is 20~70r/min, which can be used as different test standards.
*Brushless motor drive, smooth and noiseless operation.
*Color touch screen, Chinese and English dual menu operation.
*There are two counting methods, positive counting and reverse counting, and each station can be individually locked.
Specifications
*Test station: 4 stations, 6 stations, 8 stations, 9 stations optional
*Counting range: 1~999999 times
* Friction stroke: 24 ± 0.5mm, 60.5 ± 0.5mm
*Weight of pressurized material:
A. Grinding head: 198 ± 2g
B. Weight of clothing sample: 395 ± 2g
C. Weight of furniture decoration sample: 594 ± 2g
Grinding head: 155 ± 1g
E. Stainless steel butterfly: 260 ± 1g
*Effective friction diameter of grinding block:
198g (1.96N) friction head φ 28.65±0.05mm
155g (1.52N) friction head φ 90±0.10mm
*Relative movement speed of gripper and grinding table: 47.5 ± 2.5r/min (adjustable from 20 to 70r/min)
*Weight of sample loading hammer: 2.5kg ± 0.5kg

Models	Y401E-4	Y401E-6	Y401E-8	Y401E-9
Power/Air	AC220V 50Hz 500W	AC220V 50Hz 500W	AC220V 50Hz 500W	AC220V 50Hz 500W
Demensions	600*550*330mm	780*620*330mm	780*620*330mm	780*620*330mm
Weight	77kg	107kg	120kg	130kg
