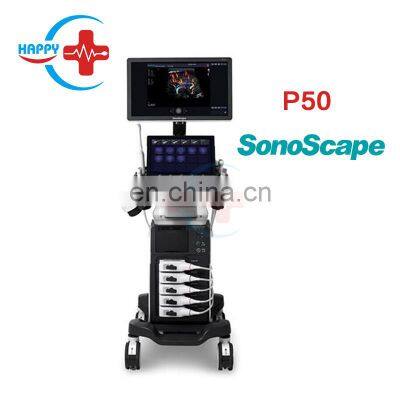

High-end color Ultrasound color doppler /Color ultrasound /P50 sonoscape for human

Product Description

Product Description
High-end color Ultrasound color doppler /Color ultrasound /P50 sonoscape for human Product Description Features for Original High-end color Ultrasound color doppler /Color ultrasound /P50 sonoscape for human : PlatformPc-basedProbes3.5MHz R60/R50 convex probe; multi-frequency from 2.0MHz to 5.0MHz 7.5MHz L40 linear probe; multi-frequency from 5.0MHz to 10.0MHz 6.5MHz R10/R13 transvaginal probe; multi-frequency from 5.0MHz to 8.0MHz 3.5MHz R20 cardiac probe; multi-frequency from 2.0MHz to 5.0MHzBeam formingDBF, RDA, DRA, DRFDFSDynamic frequency scanning from 2.0 to 12.0MHz, 4 multi-frequency scanningTHIyesDisplay modeB, 2B, 4B, B/M, MDynamic range≥100dB, 4 steps of switching functionsImage process technologiescontrollable frame correlation, Gamma correction, edge enhancement, image smoothing, image denoisiong, automatical gain adjustment, up/down, left/right and black/white conversation.Image magnificationstepless magnification, dynamic real-time PIP local zoom functionsCine loop512 frame auto/manual cine loop; multi screens cine loop (4B, 9B); auto/manual cine loop under B/M and M mode.Image management systemthe functions of pigeonholing, browsing, comparing, saving, printing and transferring images; as many as hundreds of thousands of images and thousands of cine loop could be saved; saved images could be operated by full-screen browse under slide mode. Measurement and calculationmeasure perimeter and area by distance or ellipse method; measure perimeter and area by track method; measure body surface area and volume by ellipse method. 4 measure sticks; rate measure; linear stenosis ratio, area stenosis ratio, angle measure. All calculations are automatic. Assist toolspuncture guide, histogram, sectional drawing.Menu manage interfacereal time online support and navigation clew system, image fore-set and one-key optimization functions.Body marksMulti-tensPatient cases database systemAll the data could be saved, searched and managed. Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve.Presetting FormulasPresetting system for diagnosis and measurement formulas. Different formulas could be set according to different races.Auto-measure software of OB., Gyn., small organs, cardiac, urology and othersOB.: BPD, CRL, GS, HA, AC, HC, FL, APAD, TAD, FTA, HUMERUS, OFD, THD, TIBIA, ULNA, AFI, LIMP, BBT, FBP Gyn.: uterus diameter, intima thickness, ovary colume, regnant ovarian follicle, length of cervix long-diameter, uterine. Small organs: thyroid gland, hip joint. Cardiac: AOD, LAD, IVSTd, LVIDd, AA, LAD/AOD, LVPWd, LVIDs, EF, EF SLP, CA/CE, MVCF, CO, CI, LVMWI, AVSV, FS, ACV, ET, SV, SI, LVMW, QMV Urology: remained urine sample, prostate,PSAD. Patient cases database systems. All the data could be saved, searched and managed. Multiple kinds of OB. measurement reports, fetus physiological grades and reports and fetus growth curve.3D softwareyes4D softwareyes, optionalRelative extended portsVGA, S-Video, TV video port USB2.0 port, 2G saving card RJ-45 network port Multiple kinds of saving modes are all supported, containing soft disk, hard disk, flash disk, CF card, SD card and others. Compatible of jet printer, laser printer, video printer and video recorder Pictures for High-end color Ultrasound color doppler /Color ultrasound /P50 sonoscape for human : Packaging & Shipping Company Information Our Services FAQ1. How to place order of Original High-end color Ultrasound color doppler /Color ultrasound /P50 sonoscape for human ?A: Firstly we confirm product details and then send the Proforma Invoice, You make payment to us through Alibaba Trade Assurance or T/T, Western Union or MoneyGram, after we confirm your payment then ship the product to you once finished production. 2. For Original High-end color Ultrasound color doppler /Color ultrasound /P50 sonoscape for human product, What’s the minimum order quantity (MOQ)?A: For disposable material,We have our own MOQ,For our Original High-end color Ultrasound color doppler /Color ultrasound /P50 sonoscape for human , our MOQ:1pc, 3. What is your warranty?A: For most products the warranty is for 12 months, some products we provide 18 months warranty. For Original High-end color Ultrasound color doppler /Color ultrasound /P50 sonoscape for human , we provide 12 months warranty.4. What’s your delivery time?A: Generally it is 5 working days if goods in stock. within 10 working days if the goods need production, And also the delivery time depands on quantity. For Original High-end color Ultrasound color doppler /Color ultrasound /P50 sonoscape for human , the delivery time is 10 working days .5. How to ship the product?A: The shipping way normally depand on your quantity,total CBM and weight. We have our own shipping company to provide best shipping cost and efficient way.
