High Precision Flat Bed CNC Lathe Machine Ck6150 CNC Turning Lathe Machine

Product Description

Product Description

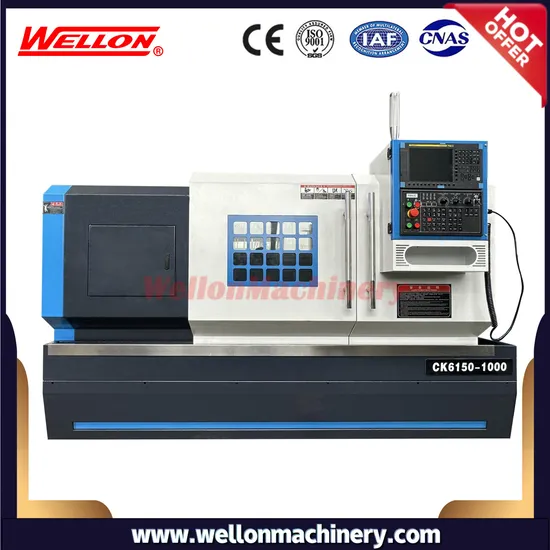

Flat Bed CNC Turning Lathe Machine CK6150

Detailed Photos

Product Parameters

It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface,end face.
It can also turn the single and multiple threads in metric , inch and other standard.1.High rigidity pedestal and wider lay board are suitable for heavy cutting.2.Four station electric turret3.Frequency conversion stepless speed regulation
Technical parameters:

SPECIFICATION	CK6150
Max. swing over bed	500mm
Max. swing over cross slide	290mm
Distance between centers	1000/1500/2000mm
Guide way width	400mm
Spindle bore	82mm
Max. diameter of the bar	65mm
Spindle speed	45-1600 rpm
Spindle nose	A2-8 (A2-11 optional )
Spindle motor power	7.5kw
X/Z axis repeatability	0.005mm
X/Z axis rapid feeding speed	6/8 m/min
Tool post type	4-station electric turret
Tool bar section	25*25mm
Tailstock sleeve dia.	Φ75mm
Tailstock sleeve travel	200mm
Tailstock taper	MT5#
N.W.	2300kg
Machine dimension	2950*1520*1750mm

Standard accessories: Siemens 808D controller
4 station electric turret
Manual chuck
Manual tailstock
MPG
Integrated automatic lubrication system
Coolant system
Lighten system
Dead centers
Center sleeve

Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,
Double Column Machining Center,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper
machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.
