Factory Concrete Floor Saw Cutting Machine Asphalt Road Cutter Machine

Product Description

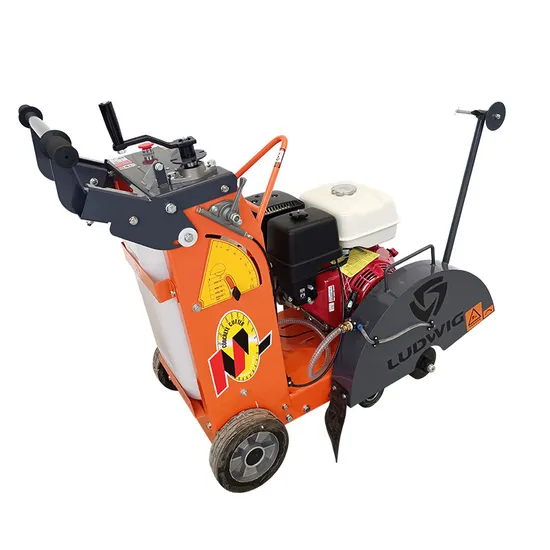

GFS480 GASOLINE/DIESEL ROAD CUTTING MACHINE
Features and Advantages
1.It is a necessary machine in the construction of road. Super-rigid box frame ensures straight cuts while resisting warping and vibration-prolongs saw life;
2.extends blade life. Height adjustment handle with comfortable grip handles,
3.Easy crank for raising/lowing cutting depth. Hinged front lift-up blade guard is designed to provide easy blade replacement; easy-remove, rustless poly water tank provides an optimum flow and volume of water to the blade.
4. It uses sheet diamond, which has the virtues of quick cutting speed, and even cut. Meanwhile, sheet diamond could cut the steal beams in concrete. It has simply, safety construction, easy and flexible operations.
This type of design of cutting machine,low noise,high reliabilityUsing diamond film cutting,the cutting speed is quick,clean cut appearance,Along the guide rod,ensure accurate cutting direction.Water spray system design with unique,cooling and lubricating film cutting,prolonging the service life of the blade.
Product Show
Specifications

Specification
Model	GFS480	GFS480D
Weight	120kgs	145kgs
Blade Diameter	400-500mm
Dia. of blade Aperture	25.4/50mm
Max. Cutting Depth	180mm
Cutting Blade Speed	2820mm
Depth Adjustment	Handle Rotation
Driving	Manual Push or Semi-automatic propelled via worm gear
Water tank Capacity	35L
Sprinkling System	Gravity fed
Shipment Dimension	1220*600*1000mm
Engine Model	Gasoline	Diesel
Engine Power Output	13-15HP	9-10HP

Workshop Show
Factory Show
Canton Fair and Cooperation
Certificate&Authorization
Company Introduction
Gewilson is one the national leading manufactures and exporters of powered equipment in China ,It is specialized in generator ,gasoline and diesel generator sets.
gasoline and diesel engine ,water pump,garden machinery,small construction equipment and so on. The company has approved ISO9001 quality system certificate, the products have approved the certificate of CE, EPA, etc.80% of our products are exported abroad, mainly to USA, Europe,Australia, South Asia and Africa.
If you are interested in our products, please feel free to contact us , we will give a detailed introduction to your questions.
