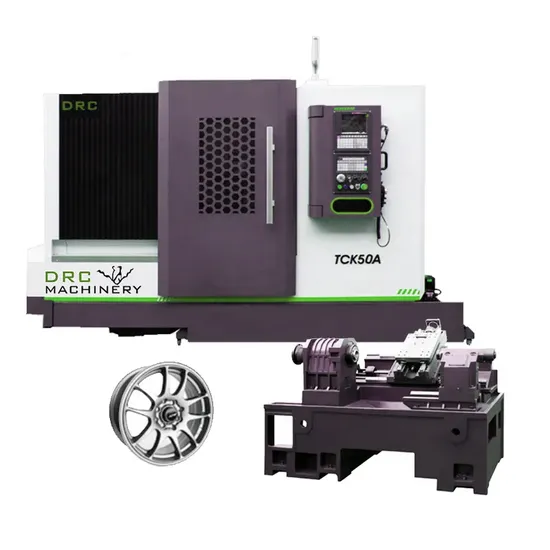

Factory CE Certified After Sales Provided CNC Lathe and Milling Machine
Basic Info.
Model NO.
tck
Type
Horizontal Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Transport Package
Packing in Seaworthy Wooden Cases
Specification
Dimension(L*W*H): 2500*1700*1890
Trademark
DRC
Origin
China
Production Capacity
500
Product Description
Factory Ce Certified After Sales Provided Cnc Lathe And Milling Machine| Model | TCK 46A (GSK998T system) |
| Standard accessories | Unit ( mm ) |
| Maximum turning diameter of bed | Φ460 |
| Maximum turning diameter of cross slide | Φ170 |
| Maximum processing length | 350 |
| Standard chuck specifications | 8 inch Bedford/Taiwan |
| Hydraulic knife tower | 8 station(Optional)12 |
| X axis maximum stroke | 240 |
| Z axis maximum stroke | 400 |
| Spindle speed | 3500rpm |
| Spindle speed stage | stepless |
| Spindle end code | A2-5 |
| Spindle through hole | Φ56 |
| Pull tube through hole | Φ45 |
| Maximum diameter of boring tool | Φ32 |
| Cutting feed rate | 1-15000mm/min |
| X/Z motor torque | 7.5/7.5/NM(X direction with brake) |
| X/Z axis rapid movement rate | 18/18m/min |
| Tool body size of turning tool | 25*25 |
| Spindle motor power | 5.5KW |
| Sleeve diameter | 70 |
| Sleeve stroke | 80 |
| Turret center high dimensions | 80 |
| Spindle unit | Φ170 |
| Screw bearing | 35/35/PMI/HIWIN/Taiwan |
| X/Z Ball Screw | 7206B/DB/P5/PMI/HIWIN/NSK |
| The X/Z axis screw specifications | 3210/4010 |
| Taper hole of tailstock sleeve | MT5# |
| Maximum stroke of tailstock | 200 |
| Dimensions (length × width × height) | 2500*1700*1890 |
| Total Weight | 2600KG |
| Main accuracy index of machine tool | |
| Test items | Standard tolerance(mm) |
| Periodic axial movement of the spindle | 0.005 |
| Radial runout of the positioning cone of the | 0.005 |
| Position | X:±0.003 Z:±0.003 |
| Repeat positioning accuracy A | X:±0.003 Z:±0.003 |
| Diameter consistency | 0.01/150 |
| Flatness | 0.02/φ200 |
| Thread pitch product error | 0.010/50 |
| Surface roughness | Ra1.6μm |
