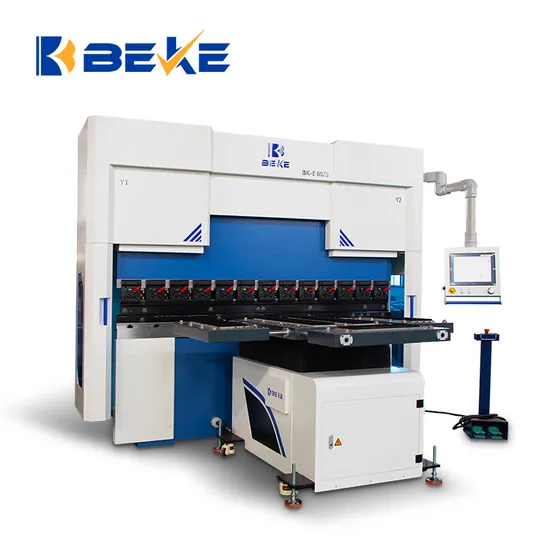

100t CNC Metal Bending Machines 3200 mm CNC Sheet Press Brake
Basic Info.
Warranty
3-year
Condition
New
Certification
CE
Automation
Automatic
Suitable for
Aluminum, Carbon Steel, Stainless Steel
Type
Press Brake
Slider Stroke (mm)
150 mm
Throat Depth (mm)
220 mm
Width of Working Table (mm)
150 mm
Motor Power (Kw)
6.5 Kw
Specification
1500x1200x2440mm
Trademark
BEKE
Origin
China
Product Description
| Name | Unit | BKE-40T1300mm |
| Pressing Force | KN | 400 |
| Max.bending Length | mm | 1300 |
| Distance Between Frames | mm | 1200 |
| Max Opening Height | mm | 300 |
| Slide Stroke | mm | 150 |
| Throat Depth | mm | 220 |
| Approach Speed | mm / sec | 250 |
| Working Speed | mm / sec | 0.2-45 |
| Return Speed | mm / sec | 240 |
| X-axis Back Gauge Stroke | mm | 500 |
| R-axis Back Gauge Stroke | mm | 100 |
| Work piece straightness | mm/m | ≤0.03 |
| Y1, Y2 axis accuracy | mm | ±0.01 |
| X and R axis accuracy | mm | ±0.01 |
| CNC Control Axes | Y1,Y2, X, R, Z1, Z2 | |
| Main servo motor | KW | 6.5x2 |
| CNC System | Domestic CNC system | |
| Length x Width x Height | mm | 1500x1200x2440 |
| Weight | kg | 4500 |
