Capacity 80-130t/H Gravel Stone and Construction Impact Crusher

Product Description

Capacity 80-130t/h Gravel stone and construction impact crusher

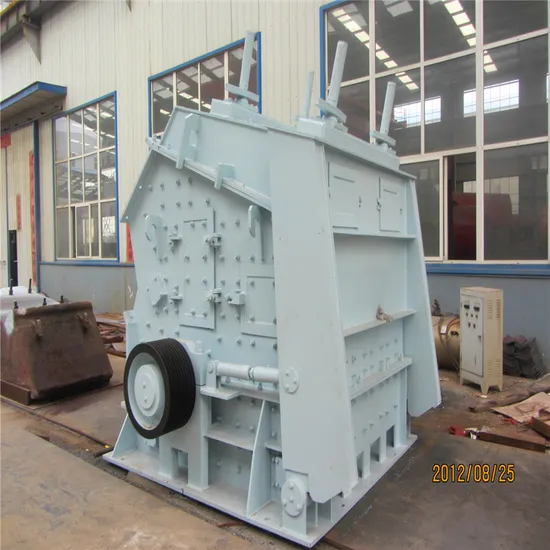

Impact Crusher Introduction:
Stone Impact crusher is designed for secondary and tertiary crushing. With a feature of big crushing ratio,high-efficiency crushing, cubic shape, selectable crushing and etc, impact crusher is suitable for crushing different compression strength of rocks and is widely used in mining, cement and concrete industries
Impact Crusher Working Principle:
The materials are crushed via impact energy produced in the impact crusher. When the materials enter the zone of the board hammer, they are flung into the impact equipment via the high-speed impact of the board hammer. These materials will be re-crushed after rebounding into the scale board. The large materials are crushed into small pieces until it becomes the specified granularities. The end products come out from the base of the impact crusher.
Main technical parameters:

Model	Specifications (mm)	Feed opening size (mm)	Max. feeding side length (mm)	Capacity (t/h)	Power (Kw)	Total weight (t)	Dimensions (L×W×H) (mm)
PF-1007	Φ1000×700	400×730	300	30-70	45	12	2330×1660×2300
PF-1010	Φ1000×1050	400×1080	350	50-90	55	15	2370×1700×2390
PF-1210	Φ1250×1050	400×1080	350	70-130	110	17.7	2680×2160×2800
PF-1214	Φ1250×1400	400×1430	350	100-180	132	22.4	2650×2460×2800
PF-1315	Φ1320×1500	860×1520	500	130-250	220	27	3180×2720×2620
PF-1520	Φ1500×2000	830×2040	700	300-550	400	50.6	3959×3564×3330
PF-1820	Φ1800×2000	1260×2040	700	600-800	630-710	83.21	4400×3866×4009

Impact Crusher Characteristics:
1. Integrated motor: crusher motor frame, the motor frame and crusher one structure,reducing installation space and belt length, increasing the life of belt because of the simultaneous movement of crusher and motor.
2. The finite element analysis techniques: with the aid of the industry's most professional mechanical design software, the whole design process and the processing technology has been efficiently controlled to gain higher yields and efficiency,meanwhile, material has been fully used to make less weight of crushers.
3. Bearing: containing 4 same bigger bearings, PEV has longer service life.
4. Bigger output: new kinematics design and suitable rotation rate make the movable jaw can get more impact. With the symmetrical "v" shaped structure crushing chamber,the crusher can get higher output.
5. Insert adjustment: at mechanization adjustment, the crusher can be regulated whether at work or shutdown. When turned into hydraulic adjustment, automatic control is achieved.
About us:
CITICHL Heavy Industries CO., LTD. The former was CITIC Heavy Machinery Co., Ltd. It was used be subsidiary of CITIC heavy machinery co., ltd. The company was founded in 1981 and finished joint stock reform in 2005, which is located in Luoyang city, capital city of nine dynasties in ancient times.
With a garden-like industrial park and modern standard plant covering 80000 square meters, CITICHL possesses advanced equipments, technologies and detecting methods. After more than 30 years development, the company has developed into a collectivized one with product designing, manufacture, installation and technical services.
The products comprise all the equipments used in mining, ore dressing, hoisting, coal preparation, crushing and grinding, cement plant, metallurgic and steel rolling, environment protection, and also power generator, heavy-duty gear reducers and large-sized castings and forgings, etc.
CITICHL is national major industry and heavy machinery manufacturing base in the middle of china, we can supply the customers with important complete technical equipments in mining, non-ferrous metal, chemical industry, metallurgy, construction materials, environment protection, and power generating as well as other basic industries. The company can accept the packed engineering project. Our products are sold well to countries and regions in Asia, Africa, Europe, and Australia, and hold a large market share home and abroad.
Inquiry Service: We are a professional Crushing and Screening machinery manufacturer in China. In order to offer you more accurate information or quotation,pls let us know details as below:
1.What kind of raw material do you want to crushed?
2.What capacity (t/h) do you want?
3.What is the max feed size?
4.What output sizes do you want to get?
