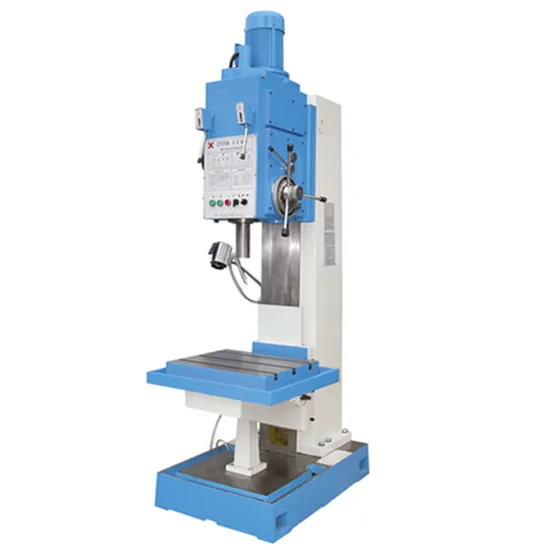

Vertical Drilling Machine Z5140b with Square Column
| US$2,970.00-4,120.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5140b
Controlling Mode
Electric
Number of Shaft
None
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max Drilling Diameter
40mm
Spindle Taper
Mt4
Stroke of Spindle Quill
250 mm
Spindle Box Travel(Manual)
200mm
Table Size
560 X 480
Main Motor Power
3kw
Vertical Travel
300mm
Color
Blue and White
Net Weight
1250kg
Spindle Feed Range
0.056-1.80mm/R
Transport Package
1090*905*2465mm
Specification
1090x905x2465mm
Trademark
uni-tech
Origin
Shandong, China
HS Code
8401200000
Production Capacity
500 Sets Per Month
Product Description
Vertical Square Column Core Drilling Machine Z5140BFeatures:
1. Z5140B and Z5140B-1 vertical drilling machine are universal drilling machine.the max drilling diameter is 40mm.
2.Z5150B and Z5150B-1 vertical drilling machine are universal drilling machine.the max drilling diameter is 50mm.
3. The table of Z5140B, Z5150B is fixed and The Z5140B-1, Z5150B-1 is cross table.
4. This machine also can enlarge hole,drill deep hole,tapping,boring and etc. except drilling hole.
5. This series machine have many advantages,such as high efficiency, good rigid,high precision,low noise, wide speed range..the machine which have cross table ,the table can manual feeding on cross ,longitudinal and lifting.
6.Suitable for batch drilling on small and medium size plate, disc or shell type and other complex workpieces.
7.High accuracy, high efficiency, high automation and high flexibility.
Standard accessories:
Vertical drilling machine
Operation manul
Certificate
Packing list
Three-jaw drill chuck
used to drill the first card
Her taper with a short set of adjustable
Retreat sets of wedge
Specifications:
| Specification | Unit | Z5140B | Z5140B-1 | Z5150B | Z5150B-1 |
| Max drilling diameter | mm | 40 | 50 | ||
| Spindle taper | / | MT4 | MT5 | ||
| Stroke of spindle quill | mm | 250 | |||
| Spindle box travel(manual) | mm | 200 | |||
| Spindle speed steps | / | 12 | |||
| Spindle speed range | r.p.m | 31.5-1400 | |||
| Spindle feed steps | / | 9 | |||
| spindle feed range | mm/r | 0.056-1.80 | |||
| Table size | mm | 560 x 480 | 800 x 320 | 560 x 480 | 800 x 320 |
| Longitudinal/cross travel | mm | - | 450/300 | - | 450/300 |
| Vertical travel | mm | 300 | |||
| Max distance between spindle and table surface | mm | 750 | 550 | 750 | 550 |
| Main motor power | kw | 3 | |||
| Overall size | mm | 1090x905x2465 | 1300x1200x2465 | 1090x905x2465 | 1300x1200x2465 |
| Net weight | kg | 1250 | 1350 | 1250 | 1350 |
