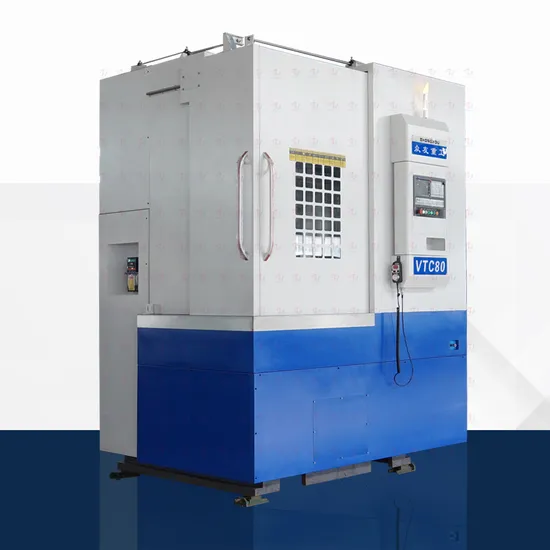

Chinese Vertical Lathe Vertical CNC Lathes

Product Description

chinese vertical lathe vertical cnc lathes
Product Description
This machine is an automatic vertical cnc lath for machining the inner and outer cylindrical surfaces of the parts, conical surface, end surface, grooving and chamfering. It is especially suitable for brake hubs, drums, clutch pressure plates and flywheels.

Main Features:

1. The machine tool is of roller type linear slide rail, with ultrahigh rigidity and overload capacity, substantially improving positioning accuracy and bearing capacity in regard to vertical and horizontal feed movement.

2. The machine tool spindle belt pulley is connected with that of spindle numerical control servo motor through belt, equipped with 22Kw motor for infinitely variable speed of wide range, satisfying different spindle speed required for parts rough machining and finish machining.

3. Both the vertical and horizontal feed is controlled by servo motor automatically. The vertical direction setting Balance weight
structure greatly extend the life cycle of lead screw

4. Automatic tool holder: the tool and detection station conversion can be realized by CNC system.

5.Automatic lubrication system is used for main moving parts.

6.Can choose different machine appearance.


Product Parameters

Specification	UNIT	VTC70	VTC80
Max.Swing diameter	mm	700	800
Spindle speed	rpm	100~1000	100~800
Cutting feed speed	mm/min	0.1~1000	0.1~1000
Vertical moving distance of tool holder	mm	700	800
Tool rest horizontal moving distance	mm	700	550
Longitudinal fast moving speed	mm/min	16000	16000
Transverse fast moving speed	mm/min	16000	16000
Tool holder form		horizontal	horizontal
Diameter of hydraulic chuck	mm	400/500/630	400/500/630
Main motor power	Kw	22	22
positioning accuracy	mm	±0.008	±0.008
Re -positioning accuracy	mm	±0.004	±0.004
Machine size	mm	2050x1800x3200	2050x1800x3200

Application

This series machine is suitable for machining parts in all industries. Especially for wheel cutting and milling.On the machine cylindrical turning and boring . tapering and surfcing as well as grooving can be carried out rough and finishing.Since the workpiece is mounted on the horizontal worktable, it is more convenient to clamp the workpiece.
Packaging & Shipping



1. Packing method: Internal plastic moisture-proof anti-rust packaging, External wooden packaging, Exclusive container transport.
2. Mode of transport: by sea or by land.

Our Services
Our services are divided into pre-sale, sales, after-sale three parts.

Pre-sale:to provide detailed advice, the program recommended to the factory inspection, as far as possible to meet your questions and needs.
Sales:can support samples, support diversified payment methods, the solid forklift tire press machine production process
transparent,standardized and quickly stocking.
After-sales:support diversification guidance, training, voice and video images, and even solid forklift tire press machine overseas site installation, on-site training, home maintenance, continuous return visit customers concerned about the use
