Latest Large Scale Three Stations PP Trays Plastic Thermoforming Machine

Product Description

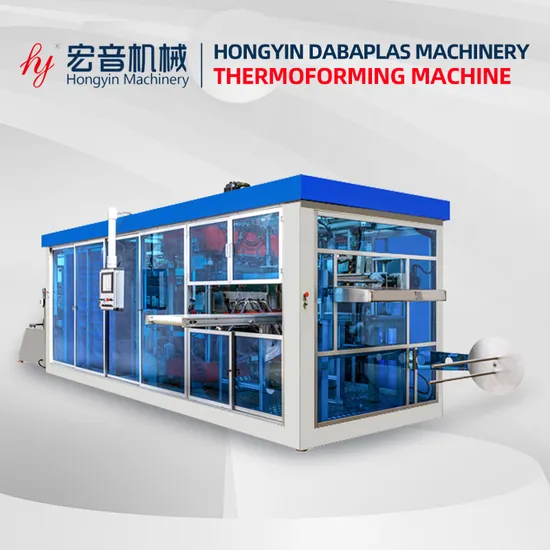

HY-3021 Positive and Negative Plastic Thermoforming Machine

Application
HY-3021 plastic thermoforming machine is mainly used to produce all kinds of high transparent, high tensile turn-up and flat products, such as food box, bowl, plate, lid, tray for daily necessities, medicine and drugs, wine, electrical parts and etc.
Features
1. Suitable for PP, HIPS, PET, PVC& PS, PLA, BOPS;
2. Positive and negative forming;
3. In-mould cutting ensuring consistent and accurate trim
4. Multi-zone upper and lower ovens incorporating an infrared heating system;
5. Advanced diagnostics;
6. Optional stacking systems.


Specifications

Model	HY-3021
Max forming area	760*540mm
Max forming depth	120 mm
Sheet thickness range	0.2-2.0mm
Speed	600-1500 cycles/hr
Heating power	180KW
Motor power	29KW
Air pressure	0.7Mpa
Air consumption	3500 liter/min
Water consumption	70 liter/min
Power supply	AC380+15V 50/60HZ
Sheet roll dia.	1000mm
Weight	9000 kg
Dimension	Main machine	6030*2180*2700 mm
	Feeder	1600*1400*1700 mm
	Rewinder	600*1300*1700 mm

Sample Shows
PackingDetails
About Zhejiang Hongyin Machinery Co., Ltd Service.
1. Purchase Service
Hongyin Company has a specialized and efficient working team. If you are new on the
printing and packing area, some samples of your products shown to us will be appreicated, and
we will give you professional suggestions of whole work.
2. Installation Service
Hongyin company will assigned 1 technician to coordinate installation, commissioning and training.
Cost for return flight and suitable accommodation will be charged, and the allowance is USD100 per day.
3. Warranty Service
12 months limited warranty.
Starting from the date of machine arrival buyer's place excluding wear parts.
Shipping cost for easy broken parts to be replaced during warranty period have to be borne by the customer.
If you are interested in our machine, please feel free and contact me.
Contacter: Michael Rao
