Construction Reinforced Steel Bar Welded Wire Mesh

Product Description

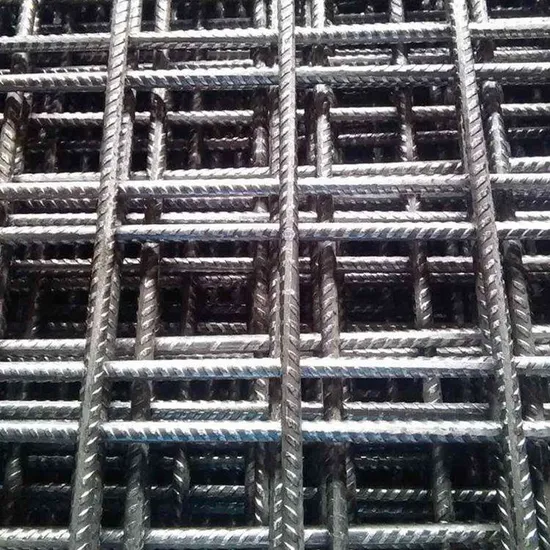

Construction Reinforced Steel Bar Welded Wire Mesh Introduction
Construction Reinforced Steel Bar Welded Wire Mesh is also known as: welded steel mesh, reinforcing bar welding net, reinforcing steel welding net, reinforcing steel welding mesh, reinforcing steel mesh , deformed steel bar welded wire mesh, and so on. The longitudinal reinforcement and the transverse reinforcement are arranged at a certain distance at a certain distance, and each of them is welded at the right angle and all the intersections are welded together.
Mechanical Properties:
Minimum Yield Limit = 500 N/mm²
Minimum Tensile Strength = 550 N/mm²
Minimum Elongation at Break = 5%, 8%
Material: Low carbon steel wire Q195 Q235
Processing mode: welded
It can be seen everywhere in our daily life, and it is very widely used, such as in engineering construction, campus
construction and hospital construction. There are many types of steel mesh, CRB600H steel bar, CRB550 steel bar is two of them.
Steel mesh also known as cold rolled ribbed construction reinforcement welding mesh, steel mesh, cold rolled ribbed steel
mesh,electric welding steel mesh, cold rolled ribbed steel mesh and so on.
Construction Reinforced Steel Bar Welded Wire Mesh Specification

Construction Reinforced Steel Bar Welded Wire Mesh
Mesh Size		Wire Diameter	Panel Sizes
In Inch	In MM	In MM	Common sizes: 2.2 x 5.8m, 2.0 x 2.9m Other sizes can be made as request
2" x 4"	50 x 100mm	4.0mm - 10.0mm
3" x 4"	75 x 100mm	4.0mm - 10.0mm
4" x 4"	100 x 100mm	4.0mm - 12.0mm
6" x 6"	150 x 150mm	4.0mm - 12.0mm
8" x 8"	200 x 200mm	4.0mm - 12.0mm

Construction Reinforced Steel Bar Welded Wire Mesh Quality control:
Construction Reinforced Steel Bar Welded Wire Mesh Workshop & Process
Construction Reinforced Steel Bar Welded Wire Mesh Packing & Delivery
Construction Reinforced Steel Bar Welded Wire Mesh Application
Construction Reinforced Steel Bar Welded Wire Mesh Can be used for House beam, house roof, building board, wall, concrete road, bridge, airfield pavement, highway, water dam, road base and constructions, etc.
