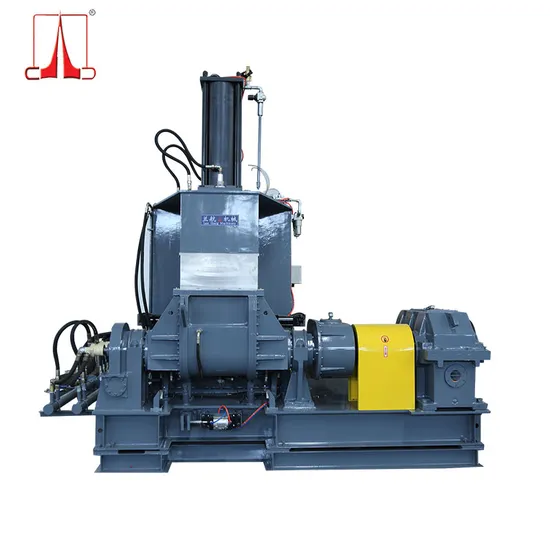

Tilting Discharging Rubber Pressed Kneader Machine

Product Description

1) Application& Features
With pressing cover at the top, material could be mixed enenly inside
Discharge tyoe: blending cylinder and extrusion
We can supply high quality products. Lanhang brand planetary screw extruder, straining extruder, pressed kneader,banbury mixer, mixing roll(open type mixer), high-speed mixer unit are the backbone products of the company and are of high technological content and strong practicality with the process technology of planetary extruder and banbury mixer reaching internationally advanced level the company's products sell well over more than twenty domestic provinces and municipalities and are even export to Southeast Asian and Mid-Eastern countries and regions. The product performances and the after-sale service are widely appreciated by the customers.

2) Main technical parameter

project\model	X(s)N-50/30A	X(s)N-55/30	X(s)N-75/30A	X(s)N-75/30B	X(s)N-110/30	X(s)N-150/30
working volume(L)	35	55	75	75	110	150
roating speed of drive rotor(r/min)	30
roating speed ratio of rotors	1:1:2
loading type	backing charging
discharge type	hydraulic dispersion
main motor power(kw)	55	75	90	110	185	220
weight(kg)	7650	10000	9000	11000	14000	19500

3) Structural member

No.	Item	Specification
1	Machine body	One set
2	Pressuring device	One set
3	Discharging device	One set
4	Transmission gear	One set
5	Tube	One set
6	Electric control system	One set

Company Information

Founded in 1992, Zhangjiagang Lanhang Machinery Co., Ltd. is a private enterprise integrating scientific research, production, marketing and service of plastic machinery into one complete whole.
Our "Lanhang" brand of planetary roll extruders, straining extruders, powerful horsepower dense mixers, mixing rolls, and high-speed mixers are the backbone of our company.
we sincerely welcome customers to cooperate with us to develop rewarding business partnerships.
Packaging & Shipping

1. Payment: 30% by T/T as down payment money, balance (70%) by T/T before shipment.
2. Lead Time: 90 working days after receiving the down payment money.
3. Package: PE film, pallet at the bottom (if necessary).
Our Services

1. Warranty period: From the day of the use of the machine in the buyer's factory:
(1) The mechanical Parts: 12 months
(2)The electrical Parts: 6 months

2. Installations and Commissioning
(1)Up to date commissioning has been made before shipment
(2)Overseas Commissioning and charges:
0ne or two technicians will be sent to the buyer to guide the installation and commissioning of thequipment if the customer requests.
Customers pay the charge of our technicians.
1) Round-trip Airplane Tickets
2) Charges of transportation, accommodation and communication
3) The allowance of the technicians is USD 100 per day for one person.
4) An interpreter is needed.

3 English manual, Figuration drawing, and footing drawings are provided.
