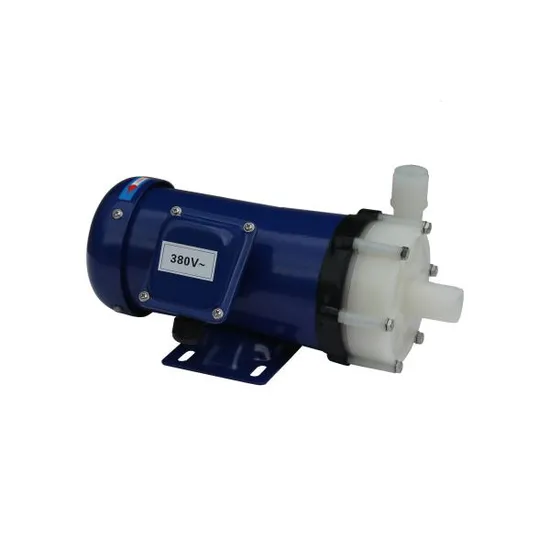

Polypropylene and PVDF Magnetic Coupled Pumps Bsp or Flange Connections

Product Description

Plastic Magnetic Coupled Pumps Magnetic Coupled Pumps are manufactured from polypropylene and PVDF thermoplastic materials. The pump technology is specifically manufactured for operation with corrosive chemicals associated with many industries. The design is unique given no seals are used to give the closed solution pump containment. The pump is operated by synchronizing magnetic forces from a drive magnet, connected to an electric motor, and the pump impeller positioned inside the pump. The assembly of the pump is simple and requires very little maintenance.
Magnetic Coupled Pumps have high tolerances, with no close touching parts between the pump impeller and suction casing. This gives an advantage when transferring solutions that have very fine particles present and liquids that can be prone to crystallization. They have a limited run-dry capability and can achieve flow rates between 0 and 1000 l/min.

TYPE			Inlet Size	Outlet Size	Max flow(LPM)	Max head(M)	Power(kw)
PP	PVDF	PPS
DJ0.5PPE	DJ0.5KV	DJ0.5PPS	3/4"	3/4"	50	5	0.065
DJ1PPE	DJ1KV	DJ1PPS	1''	1''	90	7	0.15
DJ2PPE	DJ2KV	DJ2PPS	1''	1''	120	9	0.37
DJ2HPPE	DJ2HKV	DJ2HPPS	1"	1"	160	15	0.55
DJ3PPE	DJ3KV	DJ3PPS	1-1/2"	1-1/2"	240	15	0.75
DJ3HPPE	DJ3HKV	DJ3HPPS	1-1/2"	1-1/2"	300	17	0.75
DJ4PPE	DJ4KV	DJ4PPS	1-1/2"	1-1/2"	350	17	1.1
DJ5PPE	DJ5KV	DJ5PPS	2"	1-1/2"	400	23	1.5
DJ6PPE	DJ6KV	DJ6PPS	2"	1-1/2"	500	26	2.2
DJ7PPE	DJ7KV	DJ7PPS	2- 1/2"	2"	800	31	3.75
DJ8PPE	DJ8KV	DJ8PPS	2- 1/2"	2"	980	35	5.5
DJ9PPE	DJ9KV	DJ9PPS	2- 1/2"	2"	1000	38	7.5
