Guide Post Set Guide Element Mould Making Guide Elements Mould Making Guide Elements

Product Description

Product Description

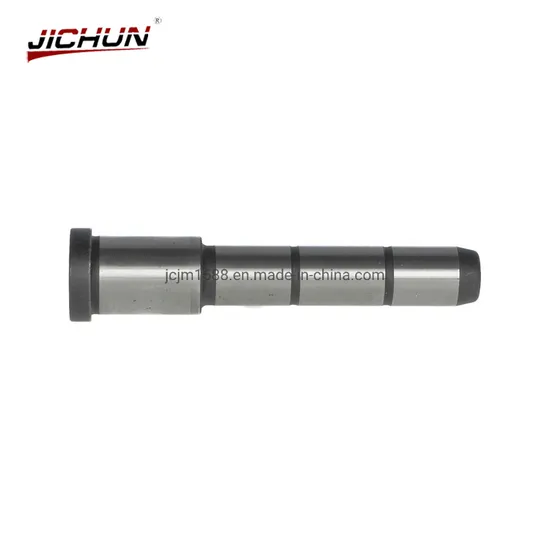

JICHUN will manufacture and supply your custom Fibro guide pillar details for use with high velocity jet cooling technology to treat soldering and shrink porosity.For best results, core pins with small diamter cooling channels should be manufactured from premium round stock and heat treated to 48-52HRC prior to finishing.Best practice in design is to manufacture a cooling channel to within 10mm of the core pin tip. It is also adviseable to plan for the largest possible diameter cooling channel and thinnest wall section in order to move heat away from critical areas.
Basic Information:

Manufacture	Jichun Mould Standard Parts Co., Ltd.
Services available	Press Die Components,Plastic Mold Components, Automation Components,etc.
Industry	Automotive, Medical, Cosmetics, Mobile Phone, Equipment manufacturing,
Mould parts size	According to customer requirements
Material	SKD61, SKD11, SKH-51, SUJ2, S45C, 1.2343, 1.2344, 1.2767, etc
Standard	DIN, AISI, JIS, MISUMI,SNAKYO,HASCO,MEUSBURGER,DME, etc.
Tolerance	As per standard or drawing
Surface	Nitriding, Titanium coating, Blacking, DLC coating, etc.
Delivery	5-25 days after payment according to order quantity
Package	in bubble bag, plastic bag, carton, wooden case, or Customized
QC System	100% inspection before shipment
Inspection Equipment	HEXAGON, ZEISS
Equipment	Wire Cutting Machine: Switzerland Agie Charmilles, etc.
	EDM: China OUWEN, Taiwan Miki, etc.
	Plain Grinding Machine: Taiwan DAWN, Japan OKAMOTO, etc.
	Circular Grinding Machine: China, Taiwan Tengchang etc.
	Vertical Milling: China Today CNC, etc.
	Lather Machine: Taiwan, China Today CNC, German DMG, etc.
	CNC Machine: China, Taiwan, Japan Mori Seiki, German DMG MORI

Detailed Photos
Fibro Standard


Certifications
Strictly control the product quality and ensure that the products are 100% qualified.

Company Profile
Dongguan Jichun Mould Standard Parts Co., Ltd. was founded in 1997. 3 factories, 5 warehouses, 95 precision processing equipment, millions of product inventory. The factory is located in Dongguan, Guangdong Province, China. At present, it specializes in producing various stamping die parts, plastic die parts, automotive die parts, FA automation parts, various kinds of mechanical parts.
[Main Products] Guide Pins,Guide bush,Stripper Guide Pin,Stripper Guide bush,Holder Guide Post Sets,Ball Guide Post Sets For Die Sets,Plain Guide Post Sets For Die Sets,Guide Posts For Die Sets,Oil-Free Slide Plates,Punches & Dies,Punches,Punch Guide Bushings,Retainers,Coil Springs,Gas Springs
At the same time, we can manufacture according to the following criteria: Hasco / Misumi / DME / Pedrotti / Voest / Strack / Fibro / DIN / DAYTON / PUNCH / DANLY / Lmina.
FAQ
How to get a quote? Send us the model or drawing you want.
How long is the delivery time? Standard parts in stock and 7-12 working days.
How can you ensure the quality? We have QC department to control the quality from the begining of production until goods finish.
What is your terms of payment? Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
