CNC Vertical Machine Center Vertical Drilling and Milling Machines Fast Speed

Product Description

HS-512 CNC Vertical Machine Center Vertical Drilling and Milling Machines Fast Speed
Product description:
1.Efficiency: With its automated and computerized process, CNC machining is much faster than traditional methods. Additionally, the machines can run continuously, reducing production time and increasing output.
2.Precision: With CNC machining, the possibility of human error is minimized, resulting in highly precise and accurate products. This level of precision is especially crucial in industries such as aerospace and medical, where even the slightest error can have severe consequences.
3.Versatility: CNC machines can produce a wide range of products by simply changing the program and tooling. This makes them suitable for mass production of standardized products as well as the production of customized and one-of-a-kind items.
4.Cost-effective: While CNC machines may have a high initial investment, they can ultimately save on labor costs and reduce waste. The precision of CNC machining also means less material is wasted during the production process.

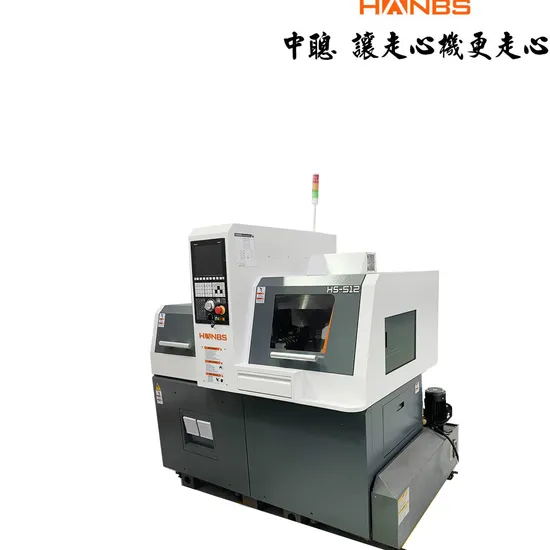

Product Photoes
Product Information
Maximum processing diameter Φ12mm
Maximum processing length(2.5d in the mode without guide bush 60mm
Axial maximum drilling diameter Φ5mm
Axial maximum tapping size M5
Maximum spindle speed(for short-term use only) 10000rpm
Radial maximum drilling diameter Φ5mm
Radial maximum tapping M4
The maximum clamping diameter of the back spindle Φ12mm
The maximum workpiece extension of the back spindle 30mm
The maximum drilling diameter of the back spindle Φ5mm
The maximum tapping diameter of the back spindle M5
The maximum speed of the back spindle(only for short-term only) 12000rpm
The maximum take-out length of the workpiece 40mm
Side powered tool unit 3
Knife row(12*120*5+6*120*1) 5
Fixed knife(Φ25mm*4*2 for the front and back;Φ25mm*4 for the back) 13
The maximum number of tools installed as standard 21
Z1,Z2,X2,Y Axis fast forward speed 24m/min
X1 Axis fast forward speed 18m/min
Spindle center height 1000mm
Input power 7KW
Weight 1500kg
Dimensions(WXDXH) 1950*1100*1700mm Processing case
Factory
Packing&Shipping
Certifications
Q&A
1: How to select machine tools?
A: For selection, please send us the drawing of the turned part, our engineers will evaluate the drawing and provide the CNC lathe configuration that suits your needs.
2: What are your main products?
A: SmartLathe has concentrated all its resources to successfully develop the HS series of Swiss CNC lathes, including HS-820, HS-926, HS-320, HS-512 and CNC machines.
3: Where is our factory located? How to visit?
A: Our factory is located in Dalang Town, Dongguan City, Guangdong Province, China. We warmly welcome you to visit our factory.
4: How is the warranty situation?
A: The warranty period is 12 months from the date of the bill of lading.
5: Can we visit your factory before placing an order?
A: Of course. Welcome new and old friends to visit the factory.
6: Do you have any inventory?
A: Sorry, most of our machines are out of stock. We always produce according to orders.
7: What is the minimum order quantity?
A: There is only one set.
8: How is your quality?
A: We have approved the ISO9001:2008 quality management system. ISO14001 Environmental Management System, OHSAS18001 International Occupational Health and Safety Management System, and Social Responsibility 8000 (SA8000). You can rest assured of our high-quality products and the best service.
9.Do you have professional engineers?
A: Yes, we have professional engineers and designers. We can provide OEM services.
10: Can you provide customized machines?
A: Yes, we can design and manufacture according to your specific requirements.
