Mini 60kgs 100 Lbs Electronic Magnetic Lock/Electromagnetic Lock
| US$4.50-6.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AEL-60
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Company, Garage, Community
Working Principle
Electronically Controlled Magnetic
Type
Electromagnetic Lock
Size
80lx40wx24 H(mm)
Armature Plate Dimension
75lx33wx11h(mm)
Holding Force
60kg(120lbs)
Input Voltage
12VDC
Current
12V/120mA
Suitable
File Cabinet ,Display Cabinet
Surface Temp
≤+20ºC
Operating Temp
-10~+55ºC(14-131f)
Humidity
0~90%(Non-Condensing)
Cover Finish
Anodized Aluminum
Transport Package
Box; Carton.
Specification
MG Lock
Trademark
Techcrepower
Origin
China
Product Description

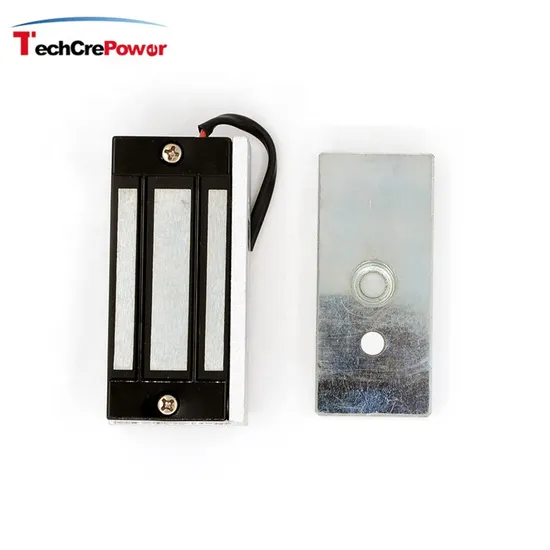

mini 60kgs 100 lbs electronic magnetic lock/electromagnetic lockAEL-60 is a mini single door electric lock, it is designed for showcase, cabinet door and easy to install. The holding force is 120lbs.
Features:
• Collinear Load Test 60kg/120pounds
• MOV Provides Reverse Current Protection.
• Anti-Residual Magneism Designed.
• High Strength Material, Anodized Aluminum Housing.
• Design with no Mechanical Bolt.
• Increase the holding Force, Dual Insulative Hosing.
• CE Certificate by European Union, MA Certificate by China Public Security Office.
Technical Specification:
| Product Parameter | Description |
| Size | 80Lx40Wx24 H(mm) |
| Armature Plate Dimension | 75Lx33Wx11H(mm) |
| Holding Force | 60kg(120Lbs) |
| Input Voltage | 12VDC |
| Current | 12V/120mA |
| Suitable | File Cabinet ,Display Cabinet |
| Surface Temp | ≤+20ºC |
| Operating Temp | -10~+55ºC(14-131F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 0.6KG |
