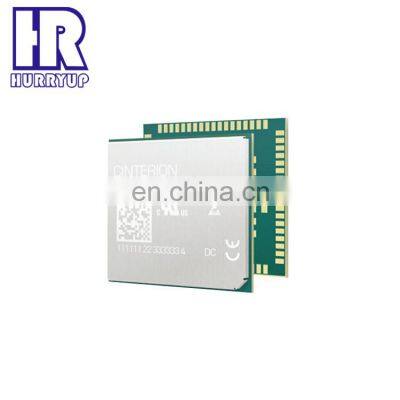

EHS6 3G Wireless Module

Product Description

Product Description
DescriptionCinterion EHS6 Wireless 3G moduleBrief Descriptions of Cinterion EGS6:· Five-Band 3G (HSPA)· Ultra-compact LGA· Java ME 3.2· Integrated FOTA· Secure TCP/IP· Extended operating temperature range: -40° to +90°C The flagship Cinterion® EHS6 is the 5th generation of Gemalto M2M’s Java embedded machine-to-machine (M2M) modules, which have simplified highly efficient, end-to-end industrial communication for the last decade. The tiny EHS6 module offers the latest Java ME 3.2 client runtime platform optimized for resource-constrained M2M applications. It significantly reduces total cost of ownership (TCO) and time to market by sharing internal resources such as memory, a large existing code base and proven software building blocks.The improved Java concept uses Multi MIDlet Java execution to simultaneously host and run multiple applications and protocols. An extended security concept with the latest TLS/SSL engine provides secure and reliable TCP/IP connectivity while an enriched internal flash file system enables royalty free firmware updates over-the-air (FOTA) when required. Sophisticated sandbox models and layered architectures simplify device management (DM) and separate mobile network operator approvals from application code development allowing simultaneous progress of both phases for a shorter time to market.Providing the capability for multiple designs from one solution, EHS6 is an ideal module for M2M applications migrating from 2G to 3G that require cost efficiency along with global connectivity. EHS6 offers five band HSPA to support high bandwidth connectivity, enabling speeds up to 7.2 Mbps in downlink and 5.7 Mbps in uplink and rounds out the existing portfolio comprised of the Industrial Platform.General Features:· > 3GPP Rel.7 Compliant Protocol Stack· > Five Bands UMTS (WCDMA/FDD)· Bands: 800, 850, 900, 1900 and 2100 MHz· > Quad-Band GSM· Bands: 850, 900, 1800 and 1900 MHz· > SIM Application Toolkit, Class 3,· with BIP and RunAT support· > Embedded IP stack· > Control via standardized and extended· AT commands (Hayes, TS 27.007 and 27.005)· > TCP/IP stack access via AT command and· transparent TCP services· > Secure Connection for client IP services· > Internet Services TCP/UDP server/client, DNS, Ping,· FTP client, HTTP client· > Supply voltage range 3.1 - 4.5 V, highly optimized· for minimal power consumption. (Baseband) Supply· voltage range 2.8 - 4.5 V (RF-PA)· > Dimension: 27.6 x 25.4 x 2.3 mm· > Weight: 3 g· > Operating Temperature: -40 °C to +90 °C· · Specifications:· > HSDPA Cat.8 / HSUPA Cat.6 data rates· DL: max. 7.2 Mbps, UL: max. 5.76 Mbps· > EDGE Class 12 data rates· DL: max. 237 kbps, UL: max. 237 kbps· > GPRS Class 12 data rates· DL: max. 85.6 kbps, UL: max. 85.6 kbps· > EU eCall and ERA/GLONASS support· > CSD data transmission up to 9.6 kbps, V.110,· non-transparent· > SMS text and PDU mode support· > High quality voice support for handset, headset and· hands-free operation· > Integrated TTY modem· > Speech codec: FR, HR, EFR and AMR· · Specifically Features:· > USB interface supports multiple composite modes· and a Linux-/Mac- compliant mode· > Firmware update via USB and serial interface· > Real time clock with alarm functionality· > Multiplexer according 3GPP TS 27.010· > RLS Monitoring (Jamming detection) in 2G and 3G· > Informal Network Scan· > Customer IMEI/SIM-Lock as variant· > Integrated FOTA, configurable and free of charge· · JAVA OPEN PLATFORM· > Java™ ME 3.2· > Secure data transmission with HTTPS/SSL· > Pad for GSM/WCDMA Antenna· > USB 2.0 HS interface up to 480 Mbps· > High speed serial modem interface ASC0· > HSIC HS interface up to 480 Mbps· > 16 GPIO lines shared with DSR, DTR, DCD (all ASC0),· > ASC1 (RXD, TXD, RTS, CTS), SPI, Fast-Shutdown,· > Network-Status-Indication· > Multi-Threading programming and Multi-Application· execution· > 10 MB RAM and 10 MB Flash File System· · Interface (LGA PADS)· > ADC and I2C interface· > 4-wire high speed serial interfaces ASC1· > Digital audio interface (analog audio optional)· > UICC and U/SIM card interface 1.8 V / 3 V· > Lines for Module-On and ResetWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
