CNC Lathe Machine of Smac Brand (CJK6140)
| US$7,500.00-9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CJK6140
Guide Rail
Horizontal Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Mechanical Drive
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Weight
2260kg
Transport Package
Wooden Case
Specification
2550/2800/3300/3800X1920X2200
Trademark
SMAC
Origin
China
Packaging & Delivery
Package Size
255.00cm * 192.00cm * 220.00cm
Package Gross Weight
2260.000kg
Product Description

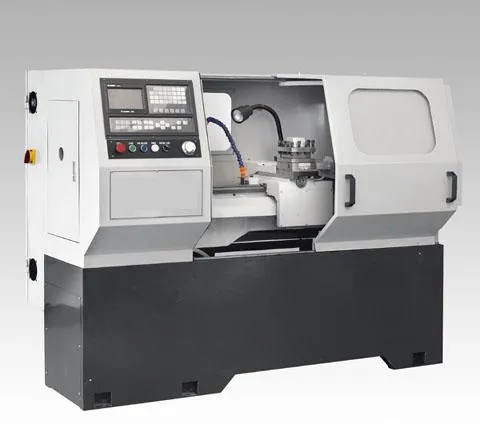

Products DescriptionCNC Lathe machine (CJK6140H)
With 4-station or 6-station turrel and protection cover, These series economic type CJK6140H/50H/66H CNC lathes are available for different needs of customers, and convient to open and close for ensuring operators' safety. The lathe has 4 types (750, 1000, 1500 and 2000). Also with FANUC 0I-TC FANUC 0I Mate-TC 21T Huazhong, SINUMERIK802D, DASEN 3I, GSK980T Guangzhou, etc. CNC systems, these lathes are capable of turning internal and external cylinders, cones, arc and curved surfaces, ends, and inch or metric threading as well. They are available for various middle or small batch production, and their excellent features can be further showed in machining complex and high accurate work.
| SPECIFICATIONS | UNIT | CJK6140H | CJK6150H | |
| Capacity | Swing over bed | mm | Φ400 | Φ500 |
| Swing over carriage | mm | Φ200 | Φ280 | |
| Max. turning diameter | mm | Φ400/Φ400* | Φ500/Φ400* | |
| Max. turning length | mm | 750/700*1000/950* 1500/1450*2000/1950* | ||
| Max. part length | mm | 530/480* 780/730* 1280/1230* 1780/1730* | ||
| Spindle | Spindle bore diameter | mm | Φ52 | Φ52/Φ82/Φ105 |
| Type of spindle nose | no | Φ52 boreISO 702/III NO.6 bayonet lock Φ82Φ105 boreISO 702/II NO.8 cam-lock type | ||
| Spindle speed range | rpm | 21 steps 11-1600 12 steps 36-1600 (Φ105 bore) | ||
| Spindle motor power | KW | 7.5 | ||
| Tailstock | Tailstock quill diameter | mm | Φ75 | |
| Tailstock quill travel | mm | 150 | ||
| Tailstock quill taper | MT | 5 | ||
| Turret | Number of tool stations | no | 4 | |
| Tool O.D. size | mm | 25X25 | ||
| Feed | X-Z axis travel | mm | X:275;Z:650/900/1400/1900 | |
| Rapid traverse rate (X/Z) | mpm | 6/12 | ||
| Others | Dimension (LXWXH) | mm | 2250/2500/3000/3500X1370X1690 | |
| Packing dimension (LXWXH) | mm | 2550/2800/3300/3800X1920X2200 | ||
| Machine net weight | | 2050/2100/2150/2200 | 2100/2150/2200/2260 | |
Company Profile
SJR Machinery Co., Ltd. , was founded in 1984, which is the main partner member of China Jiangsu International Economic-Technical Cooperation Corporation. Our company specializes in the manufacture and import/export of brand new industrial machinery and tools. We are capable of producing more than 80 types of machines.Sincerely welcoming you to contact us for more information, we look forward to becoming your supplier in the near future.
