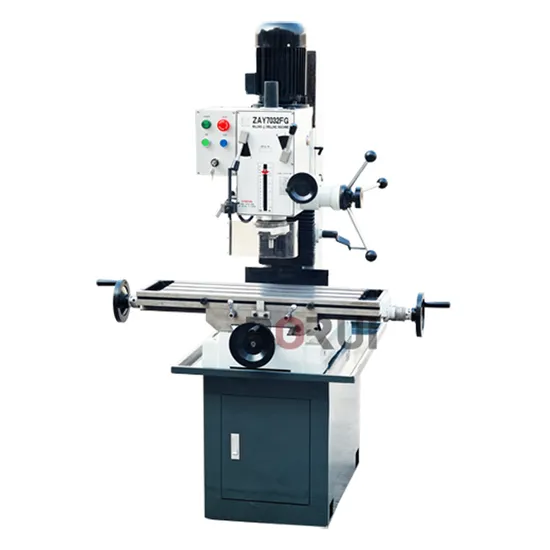

Zay7032fg/1zay7040fg/1zay7045fg/1bench Type Vertical Milling & Drilling Machine

Product Description

Multifunction drilling and milling machine ZAY7032V/1 ZAY7040V/1 ZAY7045V/1
Product Description

Feature:
The drilling and milling machine is a small and medium-sized general-purpose metal cutting machine that can be used for both
horizontal and vertical milling. It is suitable for drilling, expanding, reaming, boring and hole machining; for example, wafer
milling machines, angle milling cutters, forming milling cutters and end milling cutters, which can be used to mill planes,
bevels, vertical faces and grooves. It can be used as a multi-directional milling operation after the attachment of the vertical
milling head.

Product main technical parameters:

SPECIFICATION
ITEM	ZAY7025FG	ZAY7032FG	ZAY7040FG	ZAY7045FG
Max Face mill capacity	25mm	32mm	40mm	45mm
Max End mill capacity	63mm	63mm	80mm	80mm
End milling capacity	20mm	20mm	32mm	32mm
Max.distance from spindle nose to table	445mm	450mm	450mm	450mm
Min.distance from spindle axis to column	203mm	260mm	260mm	260mm
Spindle travel	85mm	130mm	130mm	130mm
Spindle taper	M.T.3 or R8	M.T.3 or R8	M.T.4 or R8	M.T.4 or R8
Step of spindle speed	6	6	6	6
Range of spindle speed 50Hz	95-1420 r.p.m	80-1250 r.p.m	80-1250 r.p.m	80-1250 r.p.m
60Hz	115-1700 r.p.m	95-1500 r.p.m	95-1500 r.p.m	95-1500 r.p.m
Swivel angleof headstock(perpendicularly)	90°	90°	90°	90°
Table size	520×160mm	800×240mm	800×240mm	800×240mm
Forward and backward travel of table	140mm	175mm	175mm	175mm
Left and right travel of table	290mm	500mm	500mm	500mm
Motor Power	0.37KW	0.75KW(1HP)	1.1KW(1.5HP)	1.5KW(2HP)
Voltage/frequency	As customer's requirement
Net weight/gross weight	180kg/240kg	320kg/370kg	323kg/373kg	325kg/375kg
Packing size	680×750×1000mm	770×880×1160mm	770×880×1160mm	770×880×1160mm
Loading amount	48pcs/20'container	36pcs/20'container	36pcs/20'container	36pcs/20'container

Packed in plyw/case
Delivery time: 35 days after down payment Packaging & Shipping
Packing shipping
For machine: usually by sea;
For documents: by international express, eg. DHL,TNT or EMS.
For packing :Free fumigation plywood packaging steel base
our service
1. Technical support online service provided.
2. Technical files service provided.
3. Machine operation video provided
4. On-site training service provided.
5.Spare parts replacement and repair service provided.
6 All of the questions will be replied within 8 hours
7. If you need to develop products with your own specification, we can help you to work it out.
8. Always be honest, never lie to customer, and never declare anything we don't have
