Low Speed Crusher Crushing Hard and Thick Materials Recycling Crusher
| US$2,850.00-4,550.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SG Series
Type
Low Speed Crusher
Structure
Top Feed
Certification
CE, ISO9001:2008
Rotational Speed
28
Motor
1.5-2.2kw
Customized
Customized
Sales Market
Global
Transport Package
Standard Export Packaging
Specification
Variable
Trademark
MFGSP
Origin
China
HS Code
8479820090
Production Capacity
5000sets/Year
Packaging & Delivery
Package Size
110.00cm * 410.00cm * 150.00cm
Package Gross Weight
110.000kg
Product Description

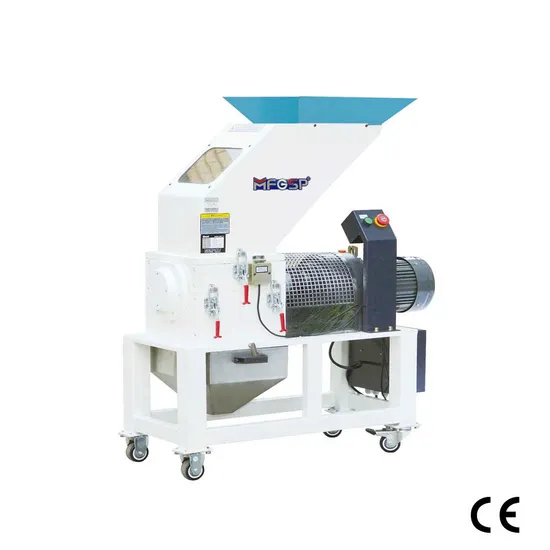

Low Speed Crusher
Performance characteristic:
The device is applicable to crushing hard and thick materials and a small quantity of waste.
Principle design of teeth cutters and staggered blades makes least dusts produced in the grinding process.The multiple security protection devices ensure high safety grade.
| Specifications: | ||||||||
| Model | Chamber Calibre (mm) | Crush Capacity (kg/H) | Rotating/ Fixed Blade (Pcs) | Rotational Speed | Motor (Kw) | Blower Power (kw) | External Dimension LxWxH (mm) | Weight (kg) |
| SG-2416-2B | 240x160 | 15-30 | / | 28 | 1.5 | 0.55 | 1020x400x1400 | 110 |
| SG-2416-2C | 240x160 | 15-30 | / | 28 | 1.5 | / | 1020x400x1400 | 110 |
| SG-2425-2B | 240x250 | 30-50 | / | 28 | 1.5 | 0.55 | 1020x400x1400 | 120 |
| SG-2425-2C | 240x250 | 30-50 | / | 28 | 1.5 | / | 1020x400x1400 | 120 |
| SG-2838-2B | 280x380 | 50-80 | / | 28 | 2.2 | 0.55 | 1200x500x1400 | 180 |
| SG-2838-2C | 280x380 | 50-80 | / | 28 | 2.2 | / | 1200x500x1400 | 180 |
| Note: 2B series equipped with blower feeding device 2C series equipped with proportional valve | ||||||||
Diagram of installation:
Tips:1. Standard equipped with material bin
2. Optional Feeding blower device, add note 2B
3. Optional Proportional valve, add note2C
