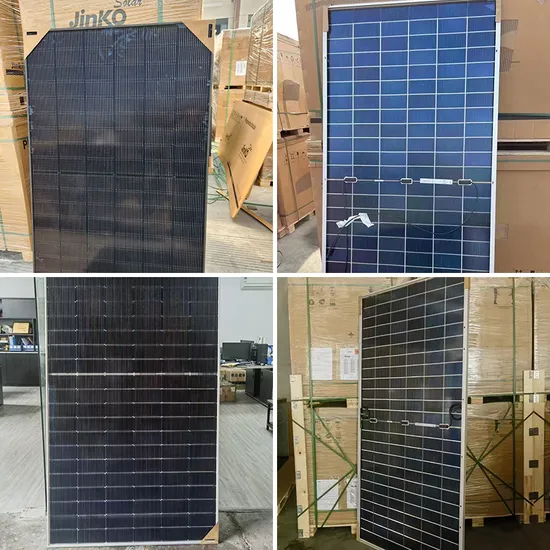

Europe Stock Jinko Tiger Neo Jkm440n-54hl4r-B 420W 430W 440W All Black Solar Panel for Home System
Basic Info.
Model NO.
Tiger Neo JKM440N-54HL4R-B
Number of Cells
108
Application
Solar Power System
Condition
New
Certification
EST, ISO, CB, CE
Material
Monocrystalline Silicon
Frame
Anodized Aluminium Alloy
Junction Box
IP 68 Rated
No. of Cells
108(6*18)
Panel Efficiency
22.02%
Keyword
PV Module
Weight
22kg
Solar Cell
Monocrystalline Silicon Cells
Cell Size
182mmx182mm
Transport Package
Carton Box with Wooden Pallet
Specification
1762*1134*30mm
Trademark
Jinko
Origin
Henan, China
HS Code
8541402000
Production Capacity
800MW/Year
Packaging & Delivery
Package Size
180.00cm * 120.00cm * 10.00cm
Package Gross Weight
25.000kg
Product Description
Product Description Europe Stock Jinko Tiger Neo Jkm440n-54hl4r-B 420W 430W 440W All Black Solar Panel for Home System SMBB Technology Better light trapping and current collection to improve module power output and reliability. Hot 2.0 Technology The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID. PID Rsisitance Excellent Anti-PID performance guarantee via optimized mass-production process and materials control. Enhanced Mechanical Loal Excellent Anti-PID performance guarantee via optimized mass-production process and materials control. Durability Against Extreme Environmental Conditions High Salt mist and ammonia resistance.| Packaging Configuration |
| Two pallets = One stack |
| 36pcs/pallets, 72pcs/stack, 936pcs/40′HQ Container |
| For more details, please send an inquiry to contact us |
| Model | JKM420N-54HL4R-B | JKM425N-54HL4R-B | JKM430N-54HL4R-B | JKM435N-54HL4R-B | JKM440N-54HL4R-B |
| Peak Power Watt- Pmax (W) | 420 | 425 | 430 | 435 | 440 |
| Maximum Power Voltage- Vmpp (V) | 32.16 | 32.37 | 32.58 | 32.78 | 32.99 |
| Maximum Power Current- Impp (A) | 13.06 | 13.13 | 13.20 | 13.27 | 13.34 |
| Open Circuit Voltage- Voc (V) | 38.74 | 38.95 | 39.16 | 39.36 | 39.57 |
| Short Circuit Current- Isc (A) | 13.51 | 13.58 | 13.65 | 13.72 | 13.80 |
| Module Efficiency (%) | 21.02 | 21.27 | 21.52 | 21.77 | 22.02 |
| Power Output Tolerance (W) | 0 ~ +5 | ||||
| STC | Irradiance 1000W/m², Cell temperature 25ºC, Air Mass AM1.5 | ||||
| Operational Temperature | -40~+85ºC | ||||
| Maximum System Voltage | 1000V DC(IEC/UL) | ||||
| Max Series Fuse Rating | 25A | ||||
| Temperature Coefficient of Pmax | -0.29%/ºC | ||||
| Temperature Coefficient of Voc | -0.250%/ºC | ||||
| Temperature Coefficient of Isc | +0.045%/ºC | ||||
