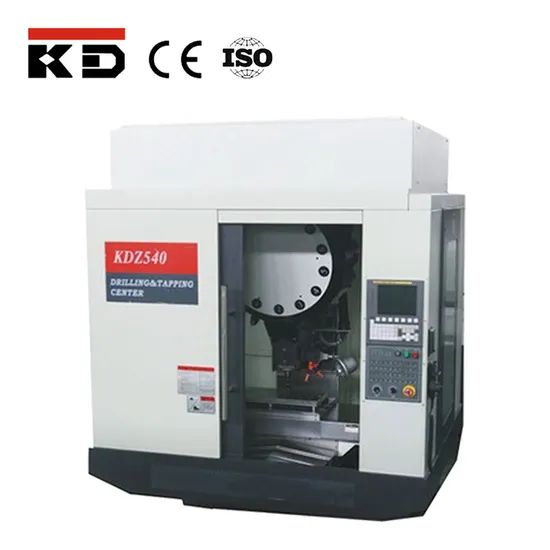

Kdz540 CNC Drilling & Tapping Center
| US$3,000.00-50,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
KDZ540
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
+-0.03mm
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Table Size
400*600/650mm
Spindle Speed
10000-12000rpm
Spindle Taper Bore
Bt30/95mm
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001, SGS
Trademark
KD
Origin
Zhejiang China
HS Code
8457101000
Production Capacity
523 Sets/ Year
Product Description
PRODUCT SPECIFICATIONS
| MODELS | KDZ500H |
| TRAVEL | |
| X axis | 500mm |
| Y axis | 400mm |
| Z axis | 330mm |
| Spindle center to column | 430mm |
| Spindle end to table | 150~-480mm |
| TABLE | |
| Table size | 400×650mm |
| T-slot(width×number×space) | 14mm×3×125mm |
| Max. table loading | 250kg |
| SPINDLE | |
| Taper bore of spindle | BT30/Ф95 |
| Spindle power | 3.7/5.5kw |
| Spindle speed | 12000rpm |
| Cutter removal from spindle | mechanical |
| FEED | |
| X/Y/Z fast feed | 60/ 60/ 60m/min |
| Torque axis motors | 9/ 9/ 12Nm |
| X/Y/Z motor connection type | Direct connection |
| ATC | |
| Tool number | 16 |
| Max. tool size (With adjacent tool) | Ф60mm |
| Max. tool size (Without adjacent tool) | Ф80mm |
| Max. tool weight | 3kg |
| Time (tool-tool) | 1.1s |
| OTHERS | |
| Min. Input | 0.001mm |
| Overall dimension | 2390x1580x2380mm |
| Net weight | 2500kg |
