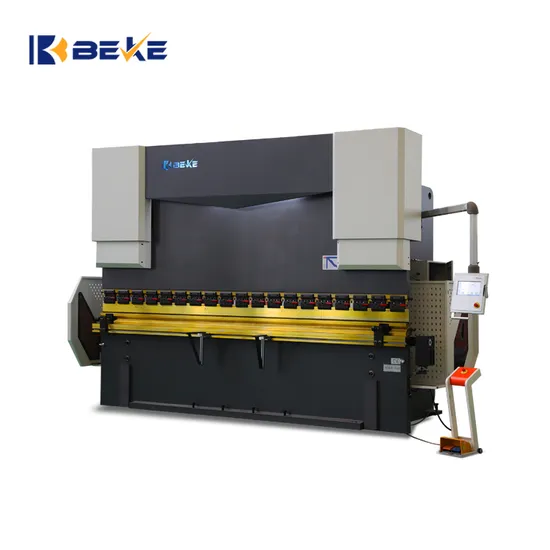

Good Quality 250t4000mm Plate Bending Machine for Sale with Mechanical Cowning
Basic Info.
Model NO.
TP10S 250T4000
Warranty
2-year
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008, CE
Automation
Semi-Automatic
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Press Brake
Model
Wc67K 250ton 4000mm
Max Bending Width
4000mm
Control System
Tp10s
Main Motor
Siemens
Oil Pump
Sunny
Hydraulic Valve
Rexroth
Transport Package
Cover with Plastic Film
Specification
4500x2050x2850mm
Trademark
BEKE
Origin
China
HS Code
8462299000
Production Capacity
50 Set/Month
Product Description
Product DescriptionProduct Parameters
| ITEM | VALUE |
| Model | WC67K 250T4000 |
| Pressure | 250ton |
| Max bending length | 4000mm |
| Max bending thickness for 4m sheet | 8mm |
| Column distance | 3200mm |
| Slide stroke | 250mm |
| Max opening height | 520mm |
| Throat depth | 350mm |
| Main motor power | 18.5kw |
| Machine size | 4500x2050x2850mm(LxWxH) |
| Weight | 16000kg |
| Axes | Y, X |
| BEKE WC67K Series NC press brake adopts the torsion axis to link the left and right pendulum rods to form a torsion axis forcing synchronization mechanism to move up and down the oil cylinders on both sides. This type of bending machine is the best choice if the bending accuracy of the sheet is not high, and it is equipped with a simple numerical control system, which is economical and practical. | |
| All steel welded structure with enough strength and rigidity; Hydraulic transmission, stable and reliable; Mechanical stop, synchronous torsion shaft, high precision; The distance of back stop and the stroke of upper slider are adjusted by electric control and displayed by digital display; The upper die is equipped with deflection compensation mechanism to ensure high bending accuracy; TP10S CNC system; Y-axis and X-axis drive automatic control. | |
