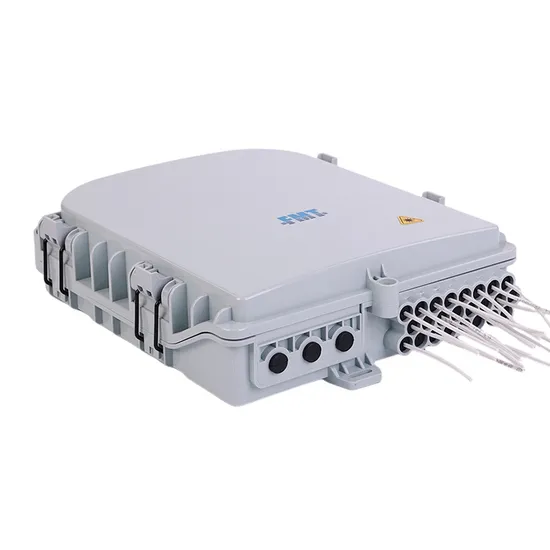

High-Performance 24 Cores Fiber Optic Distribution Box IP65

Product Description

Application The FDB-24Z Fiber Distribution Box is tailored for FTTH, PON, and OBD systems, providing robust fiber splicing, splitting, and distribution solutions. Suitable for wall-mounted or pole-mounted setups, this box is ideal for outdoor deployments in optical networks.
Product Description The FDB-24Z Fiber Distribution Box is a versatile and compact solution for managing fiber splicing and distribution in FTTH, PON, and OBD systems. With a capacity of up to 72 fiber splices and 24 SC adapters, this box integrates splice trays and cable management features for efficient fiber routing. Built from durable PC+ABS material, the IP65-rated enclosure provides excellent protection in outdoor environments. Its user-friendly design includes options for wall and pole mounting, ensuring reliable performance and easy installation in diverse applications.
Features & Benifits IP65 Protection: Ensures water and dust resistance for reliable outdoor performance. High Capacity: Supports up to 72 splices (3 trays) and 24 SC adapters. Splitter Integration: Compatible with micro splitters (1x8 or 1x16) for flexible network configurations. Efficient Cable Management: Designed to maintain a fiber bend radius of more than 40mm. Versatile Port Options: Features 3 entry ports (Ø15mm) and 24 output ports (Ø3mm). Durable Construction: Made from PC+ABS material for long-lasting use. Flexible Installation: Suitable for wall-mounted and pole-mounted setups. Environmental Resilience: Operates effectively in temperatures ranging from -40°C to +60°C. Detailed Photos
Specification

Part No.	FDB-24Z
Dimension(mm)	327×262×85
Mid-span Ports	3 x Ø15mm
Drop Cable Ports	24 x φ3
Splice tray	12/24FO
PLC tray	2 x 1:8 , 1 x 1:16
Max. tray count	3pcs
Adapter count	24 SC
