Qtj4-25 Partition Wall Brick Machine Concrete Partition Wall Brick Maker Machinery

Product Description

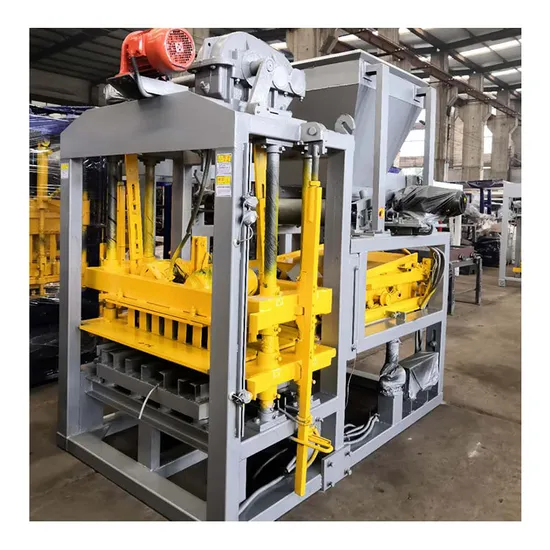

QTJ4-25 partition wall brick machine concrete partition wall brick maker machinery
Brief Introduction:
It is one of our new design brick machine ,it can make all kinds of bricks by changing moulds ,such as hollow blocks ,solid brick ,paver bricks,curbstone , etc. it is with special material feeding system on machine, make material feeding very well. 1. Area: Workshop area: 50m2, all factory area 200m2, the bigger, the better.
2. Workers : 4-5 workers.
3. Ratio of raw material:cement 8%-10% sand 30%-40% stone:50%-60%,about cement :sand : stone is1:4:5.
4.hollow block weight:(390*190*190) :17KG,(190*140*190):13.5KG,(390*90*190):10KG
5. raw material consumption per day:150-190T
6. water consumption per day:3%-5% of raw material Weight.
PLC Control Sysem
1.Touch screen operation
2.Adopt automatic PLC system
3.Full automatic , different language selection
4.Relay brand: Schneidar AC contactor
Stacker
1.Overall size: 2100(L)×1800(W)×2300(H)mm
2.Power (KW): 1.5KW
3.Electricity: 380V/220V/ (adjustable)
4.Stacker layer:4~8 layers according to the block height
5.Speed: 0.5M/S
6.Total weight: 1000KGS



JQ Series Mixer
1.Input Capacity:350L/400L/500L
2.output Capacity:350L/400L/500L
3.Max. raw diameter material :80/60 mm
4.mixing vane rotation speed:32r/min
5.mixing vane quantity:3~4
6.Dimension ((L×W×H)mm: 1.25M diameter , 1.5M diameter ,1.6M diameter
7.Power:5.5kw/7.5kw/11kw
8.Weight: 450KGS/750KGS/1000KGS
Conveyor Belt
1.length:6M /8M
2.Power:0.75/1.5KW
3.Belt: Rubber leather

Hollow block machine solid brick machine paving stone brick maker machine QTJ4-25 Productivity

Item	size(mm	Qty/mould	Cycle molding	Per hour
hollow block	400*200*200	4pcs	25s	580pcs
Solid brick	240*115*53	21pcs	25s	3300pcs
zigzag paver	225*112.5*60	9pcs	25s	1300pcs
holland paver	200*100*60	14pcs	25s	2000pcs
I paver	200*160*60	6pcs	25s	864pcs

Hollow block machine solid brick machine paving stone brick maker machine QTJ4-25 Main Technical Parameter

Main Technical Specifications
Overall Dimension	5600×2240×2400(mm)
Main vibration form	Platform vibration
Cycle Time	25 seconds
Vibrating Frequency	2800-5100rolls/minute
Motors Power	20.6KW
Pallet Size	850*550(mm)
Exciting force	50KN
Mould Material	16Mn steel with heat treatment process
Machine Material	National Standard Steel Q235
Thickness of Machine	Between 5MM-20MM. Different part the thickness is different.
Motors& PLC	Motor and PLC are best quality and famous brand
Raw Materials	crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes.
Applied Products	concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.

Hollow block machine solid brick machine paving stone brick maker machine QTJ4-25,It can make all kinds of blocks by changing different block molds . we can also make the block as your design and size .
Hollow block machine solid brick machine paving stone brick maker machine QTJ4-25 Products Samples
- - - Factory Introduction- - -
Our Factory Shandong Hongfa Machinery Co., Ltd is the professional construction building material equipment manufacturer and exporter , our factory was built in 1990, located in Linyi city, Shandong Province , our group has four factories that cover an area of 500 acres and a plant construction area of 100,000 square meters,in China .our mainly products are Concrete block making machine , AAC gas block production line , concrete batching plant , concrete mixer , concrete pipe machine .etc . we have with more than 30 years experience in this filed all of our machinery get ISO9001-2008 Quality System Certificate, CE certificate, BV certificate ,our brand "HONGFA MACHIERY" also very famous in China local .we also do export more than 20year . we exported our machines to all over the world. Our products have been recognized by many customers.
-------------FAQ ------------------- 1. Are you a manufacturer of a trading company? We are real and large concrete block machine manufacture in China .we have more than 30years experience in this filed .our factory built in 1990. we have professional R&D engineers and professional after-sales installation team,we promise our machinery quality and promise our after-sales service Don't worry about machine quality. We warmly welcome to visit and check our machine quality and factory scale . 2.Can this machine make my brick or other size block? We would design and do the mould according to customer's Drawing
3.How can I trust the machines quality?
Our products passed ISO9001-2000 and CE identifications, and we making machines for 29 years,with full experience,updating technical idea and application. Furthermore our machines have been exported to more than 106 countries and always have a good reputation from our oversea customers.We will do fully test our products before shipment, make sure every equipment work well when they are delivered. 4.When do you delivery the goods?
Normally 15 days after receipt of deposit and moulds confirmation from Buyer. 5.What about the payment terms?
30% as down deposit by T/T ,70% as the balance paid by T/T before loading(L/C is also acceptable). 6. If my machine have problem or some parts broken, how to do ? Please contact me at once, we will see what is problem and find the solution asap. and send spare parts to your asap. 7.Does the price include the mould?
Yes,the above price includes one set mould.8.How about the commissioning of the machine and training to workers?
Yes, after finish the fabrication of the block machine production line, our engineer will do the testing running and commissioning, and make the most suitable ratio of the materials to make the blocks, and train the workers how to operate and maintain the machines. ---------------------------------------------OUR SERVICE ---------------------------------1) We can Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation.Or we can make installation videos and Instructions for clients .even online to guide installation .So no worry about installation
2) Teach the local workers and clients the routine maintenance of equipment and remove common faults.
3) We are responsible for all the repairs that caused by our quality problems within one year's warranty. (We will provide one set of spare parts/wear & tear parts free of charge with shipment.)
4) We can design the client's working site layout .as client's requirement .also provide the foundation drawings and other technical data and drawings which as required.
5) We accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market, provide the products and services to meet the user's needs and create value for them.
6) We will make every effort to solve your problems, and do best for you. our after-sales service and support are always with you.
Thanks so much for your watching ,welcome to inquiry to our machinery, i will show more details to you
