150-1500kg/H Polymer PP Woven Jumbo Bag LDPE Plastic Film Pelletizing Recycling Granulating Machine
| US$20,000.00-50,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KCP/KSP
Raw Material
PE
Screw
Single-Screw
Inverter
Inverter
Electromagnetic Heater
Electromagnetic Heater
Automation
Automatic
Computerized
Computerized
Customized
Customized
Certification
CE, ISO9001:2008
Condition
New
Controller
Siemens PLC
Motor Brand
Siemens, Weg
Bearing
NSK
Output Capacity
1500-1000kg/H
Suitable Material
Post Consumer Film, Agricultural Film, Woven Bag
Transport Package
Wooden Pallets
Specification
KCP/KSP
Trademark
KITECH
Origin
China
HS Code
84772010
Production Capacity
10-30 Sets/ Year
Packaging & Delivery
Package Size
300.00cm * 100.00cm * 200.00cm
Package Gross Weight
1000.000kg
Product Description

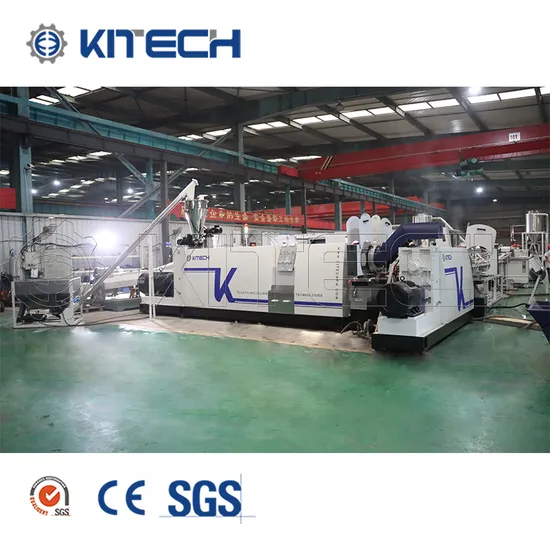

KCP series compacting pelletizing system, it is a three in one recycling machine designed for low density plastic articles. It could provide the excellent re-pelletizing and recycling solution for film,raffia, filament, woven bag and nonwoven fabric and other consumed / post soft or rigid plastic.Our pellet making machine has a wide application in PE, PP, CPP, BOPP, PS, EPS, ABS, PA,PLA, PET waste plastic materials recycling field.Technology Parameter
| Technology Parameter | |||||||
| Type | KCP80 | KCP100 | KCP120 | KCP140 | KCP160 | KCP180 | |
| Capacity (kg/h) | 150-250 | 300-420 | 400-600 | 600-750 | 800-950 | 1000-1200 | |
| Energy consumption (kWh/kg) | 0.2-0.33 | 0.2-0.33 | 0.2-0.33 | 0.2-0.33 | 0.2-0.33 | 0.2-0.33 | |
| A / Length (mm) | 10,300 | 10,300 | 11,400 | 11,400 | 14,800 | 14,800 | |
| B / Width (mm) | 6,200 | 6,200 | 6,450 | 6,450 | 6,850 | 6,850 | |
| C / Height (mm) | 3,500 | 3,750 | 3,980 | 4,250 | 4,460 | 4,850 | |
| Compactor | Volume(L) | 300 | 500 | 800 | 1000 | 1200 | 1400 |
| Motor power(KW) | 37-45 | 55-75 | 75-90 | 90-132 | 132-160 | 160-185 | |
| Extruder | Screw Diameter (mm) | φ80 | φ100 | φ120 | φ140 | φ160 | φ180 |
| L/D | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | 30-40 | |
| Motor power (kW) | 55-75 | 90-110 | 132-160 | 160-200 | 250-315 | 315-355 | |
| Filter (options) | Two position plate type | Standard | Standard | Standard | Standard | Standard | Standard |
| Two position piston type | Alternative | Alternative | Alternative | Alternative | Alternative | Alternative | |
| Back flush piston type | Alternative | Alternative | Alternative | Alternative | Alternative | Alternative | |
| Automatic self-cleaning type | Alternative | Alternative | Alternative | Alternative | Alternative | Alternative | |
| 2nd Extruder (optional) | Screw Diameter (mm) | φ100 | φ120 | φ140 | φ160 | φ180 | φ200 |
| L/D | 10-18 | 10-18 | 10-18 | 10-18 | 10-18 | 10-18 | |
| Motor power (kW) | 37-45 | 45-55 | 55-75 | 75-90 | 90-110 | 110-160 | |
| Downstream (options) | Water ring pelletizer | Standard | Standard | Standard | Standard | Standard | Standard |
| Strand pelletizer | Standard | Standard | Standard | Standard | Standard | Standard | |
| Auto strand pelletizer | Standard | Standard | Standard | Standard | Standard | Standard | |
| Underwater pelletizer | Standard | Standard | Standard | Standard | Standard | Standard | |
