Paper BOPP Slitting Machine Small Machine for Slitting BOPP Film Slitting Machine BOPP Slitter
| US$40,000.00-55,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KTSM-V500
Type
High-Speed Slitting Machine
Work Method
Flat Knife Slitting
Structure
Cutting Part
Packaging
Cartons
Classification
Slitting Roll Materials
Applicable Process
Process Materials
Suitable Substrates
BOPP, Pet, CPP, CPE, PVC, Aluminum Foil
Packaging Material
Wood
Product Name
BOPP Slitting Machine
Keyword
BOPP Film Slitting Machine
Keyword 1
Small Machine for Slitting BOPP
Keyword 2
Slitting Machine BOPP
Keyword 3
Fully Automatic BOPP Tape Slitting Machine
Keyword 4
Slitting Machine Slitter Rewinder
Keyword 5
Slitter Rewinder Machine
Keyword 6
BOPP Tape Slitting & Rewinding Machine
Plastic Film Slitting
Yes
Straight Slitting Knife
Yes
Roll to Roll Slitting
Yes
Unwind with Air Shaft
Yes
Rewind with Air Shaft
Yes
with Auto Tension Controller
Yes
Servo Motor Drive System
Yes
Transport Package
Wooden Pallet
Specification
2200x4000x2100mm
Trademark
KETE
Origin
China
Production Capacity
20 Sets/ Month
Packaging & Delivery
Package Size
220.00cm * 400.00cm * 210.00cm
Package Gross Weight
4000.000kg
Product Description

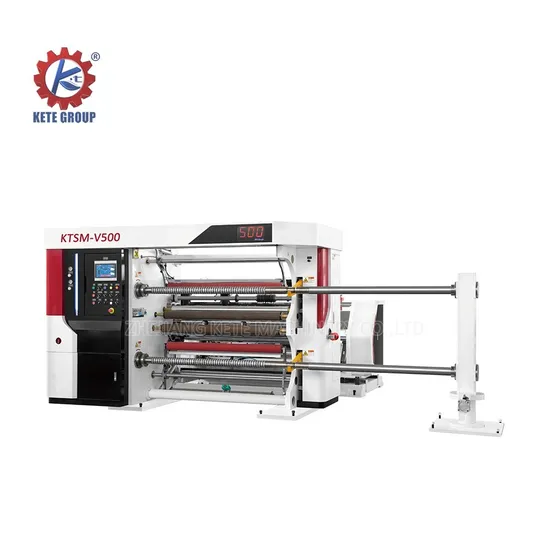

This High Speed Slitting Machine is Suitable For Slitting Roll Materials Such As BOPP, PET, CPP, CPE, PVC, Aluminum Foil, Adhesive Paper, Leather Paper, and
Other Kinds Of Paper, Etc.
Ω Use Straight and Round Slitting Knife.
Ω Unwind Shaft Less Type Auto Loading.
Ω Unwind with EPC Control System.
Ω With Auto PLC Control System.
| Model | KTSM-V500/ 1100 | KTSM-V500/ 1300 |
| Max. Raw Material Width | 1000mm (39.4") | 1200mm (47.2") |
| Max. Unwind Diameter | Φ800mm (31.5") | Φ800mm (31.5") |
| Max. Rewind Diameter | Φ600mm (23.6") | Φ600mm (23.6") |
| Min. Slitting Width | 50mm (1.97") | 50mm (1.97") |
| Max. Slitting Speed | 500m/min | 500m/min |
| Error | <0.5mm | <0.5mm |
| Paper Core Inner Diameter | 76mm/152mm (3"/6") | 76mm/152mm (3"/6") |
| Total Power | 15kw | 18kw |
| Machine Weight | 4000kg | 4200kg |
| Machine Size (LWH) | 2200 x 4000 x 2100mm | 2200 x 4300 x 2100mm |
| Machine Power | 3 Phase 220 / 380 / 440v 50/60Hz | |
