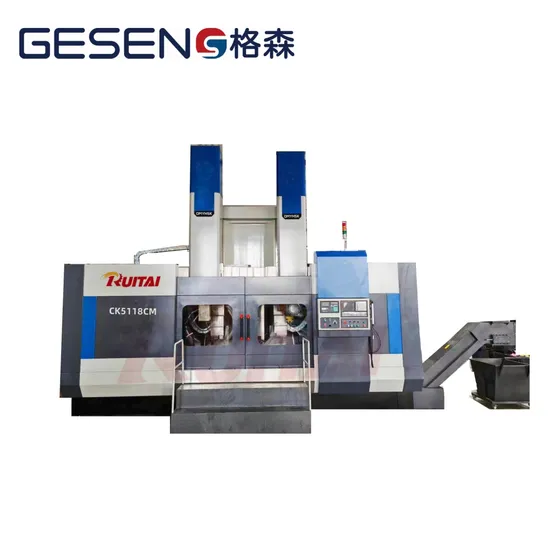

CNC Torno Mecanico Dual Column Tool Post Rotating Spindle CNC Machine Vertical Turning Grinding Composite Lathe Factory OEM

Product Description

CNC SINGLE COLUMN VERTICAL TURNING GRINDING LATHE
SINGLE COLUMN VERTICAL TURNING LATHE is suitable for:
1. High speed steel and hard alloy tools,
2. Processing all kinds of ferrous metal,
3. Non-ferrous metal and some non-metallic materials of the workpiece.

SINGLE COLUMN VERTICAL TURNING LATHE can do machining:
1. Finish roughing and fining the inner and outer cylindrical surface,
2. Inner and outer conical surface, flat surface, curved surface,
3. Grooving, threading and other processes
CK5117CM vertical turning grinding lathe machine can process the inner cone surface of the butterfly valve body and the outer cone surface of the butterfly valve sealing ring
CK5117CM turning grinding lathe for butterfly valve

Butterfly valve turning Grinding head Two vertical tool holder

Parameters
	Unit	CK5117CM	CK5123CM	CK5235CM
Max. turning diameter	mm	1700	2300	3500
Worktable diameter	mm	1500	2000	3200
Max. height of workpiece	mm	1600	1350	2200
Max. weight of workpiece	t	6	8	15
Speed range of worktable	r/min	2-160	1-120	2.5-63
Range of table speeds	grade	stepless 2-grade	stepless 2-grade	stepless 2-grade
Worktable max. torque	Kn/m	25	32	63
Axial support guide rail		High end flat bearings for rolling guide rails
Vertical stroke of tool post	mm	1000	1000	1000
Horizontal stroke of tool post	mm	950	950	1750
Feed grade of tool post		stepless	stepless	stepless
Fast moving speed of tool post	mm/min	5000	6000	2000
Max. cutting force	Kn	18	25	63
Tool bar size	mm	32×32	32x32	40x40
Ram size	mm	220x220	220x220	240x240
Workbench auxiliary guide rail		hydrostatic guideway	hydrostatic guideway	hydrostatic guideway
Angle range of knife holder		±30°	±30°	±30°
Lifting form of knife holder		CNC automatic lifting and locking
Beam travel	mm	1050	1250	2100
Beam lifting speed	mm/min	440	440	440
Speed grade of grinding head		stepless	stepless	stepless
Speed range of grinding head	r/min	1500-6000	1500-6000	1000-6500
Size of grinding wheel sizeφ	mm	300/350*40*75	300/350*40*75	127x400x50
Max. grinding height	mm	900	1200	1400
Min.grinding inner hole diameter	mm	240	240	250
Maximum grinding depth	mm	900	1000	1000
Grinding accuracy	μm	Ra0.4	Ra0.4	Ra0.4

CUSTOMIZATION SERVICE
Professional machine design to meet various working demands.
Vertical tool rest/tool turret/working height/worktable/CNC or manual/color

CK5123 economic model Cost-effective design without cover and conveyor to save shipping cost. CNC or manual lathe optional. Square ram vertical tool rest. CNC system optional.

CK5117CM turning and grinding model Additional grinding head tool rest. To improve working efficiency. Customization service to meet working demands.

CK5116BD higher precision model Two leading screws with two lifting motors. To improve working precision and stability. Four position turret as standard. Two rams optional.

Worktable rotary speed range 5-160r/min 4grade stepless speed change

Turret fast moving speed 2000mm/min Vertical turret max. cutting force 25Kn

HT300 worktable QT500 spindle Precision gear hobbing

Kindly contact us to get your vertical lathe machine tool.
