Professional Analog Digital Multimeter Multi-Function 5 in 1
| US$10.83 | 1 Set (MOQ) |
Basic Info.
Model NO.
HT-113C
Theory
Electronic Meter
Power Source
AC and DC
Maximum Scale
1999
Range Conversion Type
AUTO RANGZ
Additional Measuring Item
Capacitance
Display
LED
Battery Test
1.5V/9V
Power
2X1.5V AAA Batteries
Weight
Weight Tapprox.220g
Safety Rating
En61010-2-030,En61010-2-033,Catiii 600V
Duty
1%~99%
Transport Package
Carton
Specification
151mm*75mm*48mm
Trademark
HOTOTECH
Origin
Dongguan/China
HS Code
9030320000
Production Capacity
5000 Set a Month
Product Description
HT-113CDigital Multimeter With T-RMS/Autorange
product feature
-resistance measure up to 60mΩ with continuity detection
-large dual backlight diaplay with 4000 counts
-voltege measurement
-manual power off
-low battery indication
-backlight
-the data hold
-true RMS measrument

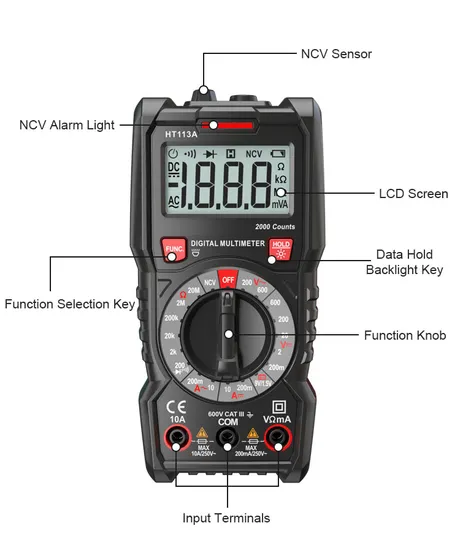

product image
Specifications
| Specifications | Range | Accuracy |
| HT113B | ||
| DC Voltage | 400mV/4V/40V/400V/600V | ±(0.5%+3) |
| 600mV/6V/60V/600V | ||
| AC Voltage | 400mV/4V/40V/400V/600V | ±(1.0%+3) |
| 600mV/6V/60V/600V | ||
| 400uA/4000uA/40mA/400mA | ±(1.2%+3) | |
| DC Current | 600uA/600uA/60mA/600mA | |
| 10A | ±(2.0%+3) | |
| AC Current | 400uA/400uA/40mA/400mA | ±(1.5%+3) |
| 600uA/6000uA/60mA/600mA | ||
| 10A | ±(2.0%+3) | |
| Resistance | 400Ω/4KΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1.0%+3) |
| 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ||
| Capacitance | 10nF/100nF/1uF/10uF/100uF/1mF/10mF | |
| 100mF | ||
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz | |
| Duty | 1%~99% | |
| Display | 4000 Counts | |
| Auto/Manual range | Auto | |
General
Power supply:2x1.5V AAA batteries
Product size:151mm*75mm*48mm
Product weight:Approx.220g
Safety rating:EN61010-2-030
EN61010-2-033
CATIII 600V
Company Profile
Introduction
visit customers
certificate
product package
transport
Transportation methods support sea, land and air transport,And various courier companies
FQA
-Do we support OEM or ODM?
-Will the original R&D manufacturing plant have a price advantage?
-Are our products high quality products?
-Do we have a good team?
-Does our product support global after-sales service?
-Are our products certified?
every answer is "YES"!
