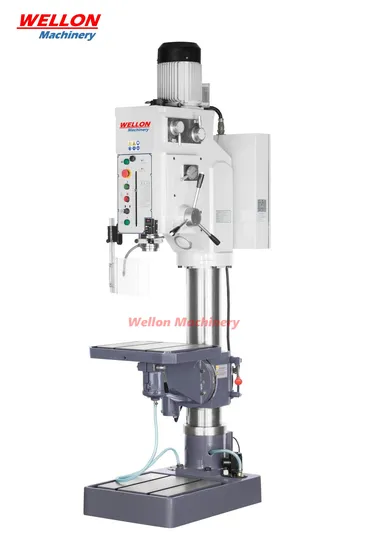

Vertical Drilling Machine Price (Z5050 Column Drill Press Machine)
| US$4,000.00-5,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5050
Controlling Mode
Artificial
Number of Shaft
1
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max.Drilling Capacity
50
Spindle Taper
Mt4 or Mt5
Transport Package
Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
China
HS Code
84592900
Production Capacity
200PCS/Month
Product Description
Products Description:Performence Features:
The machine is designed with multi-function of drilling. Broaching, reaming, tapping and facing milling. With a strengthened capacity of drilling it allows the workpieces to be drilled with larger range of size. It is suitable for using in both production and maintenance shops
1. Easy operation.
2. Casting iron structure for long durability.
3. Column type of vertical drilling machine.
4. Worktable can rotate 180 degree and tilt 45 degree
5.Worktable lifting both manual and motorized.
Technical parameter:
| Model | Z5050 |
| Max. drilling capacity(mm) | 50 |
| Max. taping capacity(mm) | M30 |
| Distance from spindle to column(mm) | 360 |
| Max. distance from spindle to work table(mm) | 570 |
| Max. distance from spindle to base(mm) | 1160 |
| Max. spindle travel(mm) | 240 |
| Max. travel of work table(mm) | 550 |
| Swivel angle of table | ±45 |
| Tilting angle of table | ±180 |
| Spindle bore taper | MT4 or MT5 |
| Spindle steps | 12 |
| Spindle speed(r/min) | 42-1685 |
| Spindle feed steps | 4 |
| Spindle feed range(mm/r) | 0.07,0.15,0.26,0.4 |
| Column diameter | 180 |
| Effective area of table(mm) | 550x470 |
| Effective area of base(mm) | 450x440 |
| Main motor power (kw) | 2.2/2.8 |
| Coolant motor power(kw) | 0.04 |
| Packing size(cm) | 108x62x245 |
| N.W./G.W.(kg) | 1045/985 |
Standard accessories:
Coolant system
Work lamp
Drill chuck
Reduction sleeve
Worktable lifting device
Wrenches
Optional accessories:
Machine vise
Spindle guard
Depth indicator
