3 Rows Corn & Silage Combine Harvester

Product Description

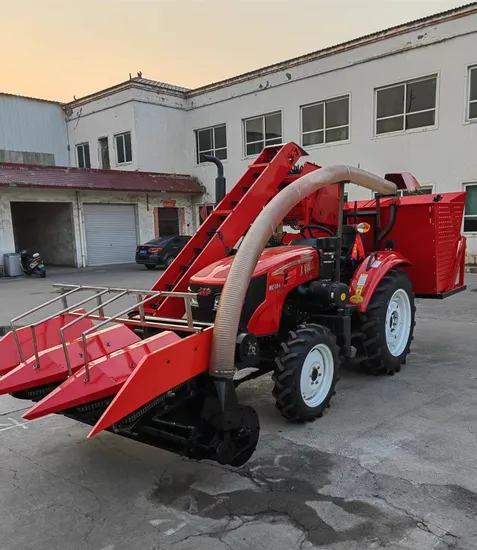

3 rows tractor mounted type corn & silage combine harvester
Tractor power range: 50hp up to 100hp, 4WD
Tractor configuration: 70hp 4x4, 4 cylinder diesel engine, dual stage clutch, power steering, 3 point linkage, 8F+8R shuttle shifts, high pressure lifter, 2 groups hydraulic outlets, tire 7.50-16/11.2-28.
Configuration of harvesters:
Double material bin 0.6 cubic meters (spike bin), 0.8 cubic meters (straw bin); Straw crushing length about 5-8cm;
3 rows harvesting width 1.8 meters (2 rows harvesting width 1.5 meters).
All models with hydraulic control, unloading height of 1.7-2.5 meters, fuel consumption is lower than the same power suitable for rotary tiller fuel consumption; skimmer with lifting silo.
Three rows of stems and ears of double grain bins with the function of the second raking.
Hourly efficiency of 0.2-0.34 hectares, matching power 50 to 100 hp, suitable for row spacing 40 to 80 cm.
The total length of the equipment is 5.5 meters, width is 1.8 meters, height is about 2.1 meters.
Total weight including tractor: ≈3000kg
