Good Sales 40cubic 45cubic 56cubic 60cubic Meter LPG Tank LPG Road Trailer Tank

Product Description

PART 1 : COMPANY BRIEF INTRODUCTION
LPG Road Tank Vehicle
1, ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is the biggest special purpose vehicle manufacturer in China.also we are famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW.Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, fecal suction truck, garbage truck, refuse compactor, sewage suction truck, fuel tank, high-altitude operation truck, truck with crane, dump truck, instructional truck, van truck, semi-trailer, fire engine, refrigerator truck, water wagon, tractor, high-altitude water truck, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.

2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
We have been in this field for over 10 years, we have more than 300 types of special trucks, our workers are more than 1000 and factory is more than 690,000m2 .We have successfully exported our trucks to Ghana, Sudan, Nigeria, Tajikistan, Namibia, Burma, Korea, Iran, Iraq, Vietnam etc. many Africa & Asia countries more than 4000 trucks every year.
3.Quality control:our company truck pass ISO,3C,BV certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.
4.Design capacity :Our factory have 30 technician and designer.
5. Exhibition:our factory attend the Guangzhou Trade Fair each year.
6. Export market: Africa,Asia,South America,Pacific and so on
7.Our company cooperate with famous chasis manufacturers,include all chinese brand like FOTON , DONGFENG , SHACMAN , HOWO , FAW , GENLYON , NORTHBENZ , CAMC , JAC , JMC .
PART 2:good sales 40cubic 45cubic 56cubic 60cubic meter lpg tank LPG Road Tanker Trailer specification :

Vehicle
Vehicle Type			LPG Semi-trailer
Design code			China GB150 , ASME for option
Overall dimension			13000×2500×4000
Actual Capacity			60M3
Curb weight			15000
Real capcity			25000Kg
Axle			13T
rear overhang			1540
axles weight			24000(three axles)
wheel base			7230+1310+1310
tire specification			13Nos Double coin 12.00-00 , Iron rim
Tank
designed pressure			1.77Mpa
Max worked pressure			1.60Mpa
designed temperature			50ºC
filling medium			propylene
corrosion allowance			1.0mm
capacity			60M3
heat treatment			Whole body
tank dimension			/mm
Tank thickness			11.5mm
tank material			Q345R
Water pressure test pressure			2.66MPa
aritightness test pressure			1.77MPa
Accessory
safety value	Model		A412F-2.5-22
	Nominar pressure		2.5Mpa
	Nominar diameter		DN100
	Opening pressure		1.90MPa
Liquid phase	Nominar DIA		DN50
	Accessory		DN50 emergency cut off ball valve
Gas phase	Nominar diameter		DN25
	Accessory		DN50 emergency cut off ball valve
Level gauge	Model		ZGM2.475/2.5
	Type		rotary tube gage
		Nominar pressure		2.5Mpa
		precision		2.5
Drain nozzle		Nominar DIA		DN50
Manhole		Nominar DIA		DN450
		Type		Inside fall-lift safty valve
Thermometer		Nominar DIA		M33X2
Pressure		Nominar DIA		M20x1.5

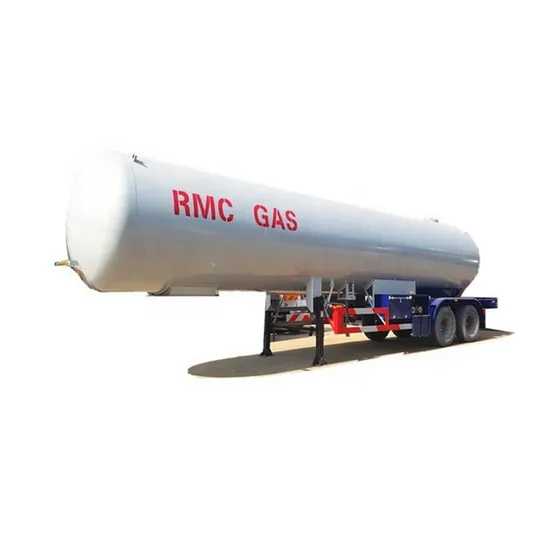

PART 3:good sales 40cubic 45cubic 56cubic 60cubic meter lpg tank LPG Road Tanker Trailer photo
Other LPG vessel like DFAC 5m3 2ton 3ton lpg tank truck bob tail lpg tanker vehicle:
PART 4: FACTORY CERTIFICATE:
PART 5: SUCESSFUL CASE
PART 6:SHIPPING:
PART 7: FAQ
New 24MT 26MT 28MT 30MT lpg tanker semi trailer LPG trailer tank Q1. Quality control
A:We make quality control for each step while producing and before shipping.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. LC terms is also can be accepted .
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.DAP etc .
Q4. How about your delivery time?
A: Generally, it will take 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. For standard products, delivery time is as below:Water tanker truck:7 days
Fuel tanker trailer:15-20days
Garbage truck:15 days
Sweeper road truck:25 days
Wecker truck:7-10 days
Suction sewage/Fecal truck:7-15 days
Crane truck:15 days
Refrigerator/Van truck:7-15 days
Dump truck:20 days
Concrete mixer truck:7-25 days
LPG :20-30 days
LED truck:7-15 days
(the above is left hand drive chassis ,if you need the right hand drive chassis ,delivery time is longer than Left hand drive truck,Detailed clauses are subject to contract .) Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. How to control truck quality?
A: we have Rich experience workers and engineer to control quality before and on production , we strictly followed STATE special truck technical specification and safety production specification . We have been in this line for over 15 years, dealing with all kinds of special trucks and trailers.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,no matter where they come from. Q9. Did you sell truck to our country before? A:Our main market is Africa, Asia, South America , Oceania ,middle east , annual sales is around 5000units and keeping growing every year .
Part 8: Clients visiting
