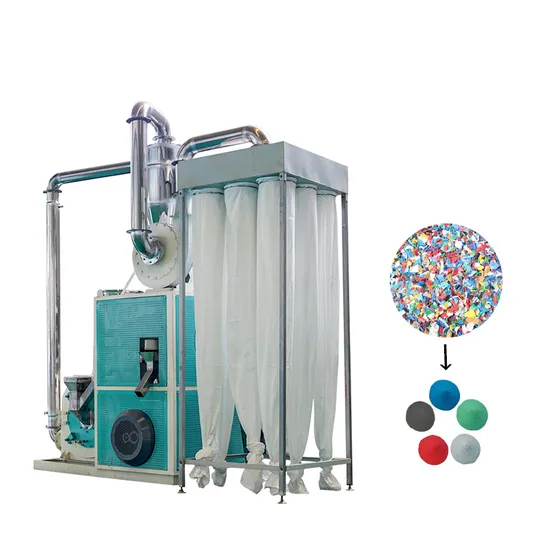

High Output Plastic Pulverizer PP/PE/Pet/ABS/EVA/HDPE Grinding Powder Miller Machine

Product Description

Mode	SHXR-500	SHXR-660	SHXR-800
Pulverizing chamber diameter	φ483 +1	φ583 +1	φ783 ±1
Main motor power (kw)	37/45	55/75/90	110/132
Rotary blade (pc)	24	28	36
Static blade (pc)	12	14	19
Type of cooling	water, forced air
Suction fan power (kW)	4/5.5	7.5/11	11/15
Off fan power (kW)	1.1/1.5/2.2	1.1/1.5/2.2	1.1/1.5/2.2
Vibration screen(mm)	ZDS-800/1000	ZDS-1200/1500	ZDS-1500
Output (kg)	200-550	450-850	750-1350
Weight (kg	1500	1800	2000
Size(mm)	1700*790	1800*790	1900*790

Technical Features

1. The new disc design is of high quality, and strong resistance and the life of this grinding disc is double the ordinary ones.
2. The newly designed professional bearings is with a high rotation rate. At the same time using only one drive motor, ensures the efficient grinding crash, which greatly saves the time of machine operation and engineering control.
3. Easy installation and maintenance, just open the door to clean up.
4. The whole milling process is sealed, without dust leakage.
5. Full automatic design, automatically feeding, discharging and sorting.
6. Grinding gap adjustment is simple, just use the feeler gauge and adjusting bolts can be fine-tuning.
7. The mill uses the water and wind double cooling system, Prevent the bearing and other parts from overheating.
8. Well-known brand accessories, such as bearings and Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.
9. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.

Application Areas

Company Profile

Wuxi Songhu Xinrui Machinery Co., Ltd. is a professional manufacturer of PE mill and PVC crusher equipment. We have an excellent R&D team and technicians, which lays the foundation for producing high quality machines.
Our factory was established in 2007, since entering the field of plastic machinery manufacturing, Songhu Xinrui has been committed to providing the world with the best quality plastic PE grinding and PVC crushing machinery with the best team and the strictest manufacturing standards, Songhu Xinrui has become the leader of domestic plastic machinery manufacturing. Songhu Xinrui's products include PE grinding machine, PVC crushing machine and other plastic recycling machinery, the products are suitable for sheet, small pipe, plastic steel, resin tile, wall panel, buckle plate, pipe, foam board, footing and many other materials. The products of Songhu Xinrui Machinery have been exported to more than 50 countries and regions all over the world.
Our company provides many different products to meet your various needs. Since the establishment of our company, we have been insisting on the business policy of "Quality First, Customer First, Reputation Based", and we believe that "the most suitable is the best". We believe that quality products and reliable service can elevate your business to another level. We believe that continuous innovation and discovery can meet the different needs of various customers. In today's unstoppable trend of economic globalisation, our company is willing to sincerely cooperate with enterprises all over the world to achieve mutual benefits and win-win situation.

FAQ

Q:Are you machinery factory or trading company?
A:We have our own factory,which means we can strictly guarantee product quality and lead time.
Q:If we have very special request for the production line,could you help me to do the design?
A:Experienced mechanical designer customized-design provided.
Q: Do you provide material testing service?
A: Yes, we offer testing service on our machine. An additional testing fee will becharged depends on the testing costs(electricity, labor), however, if you eventually made a purchase with us ,the testing fee will counts to deduction of machine purchase cost.
Q: How can I make sure the machine running good in my plants?
A: First we will have a home commissioning in our factory for your inspection. If you need assistance in installing and staff training , we can also send engineers to service overseas and solve all problems.
Q: How to get a quote efficiently?
A: Please kindly click on ' Sent An Inquiry ' Button at the bottom of page,or click "Chat now"on the right side of the page. Leave a message to describe details of your final products ( better with a picture and size drawing), Capacity requirements, We will reply to your inquiry within 12 hours
Q: How can we visit your company and machines?
A : A:Our factory is in Wuxi, Jiangsu Province, China.
Q: What are the payment methods?
T/T, L/C, Western Union, etc.
