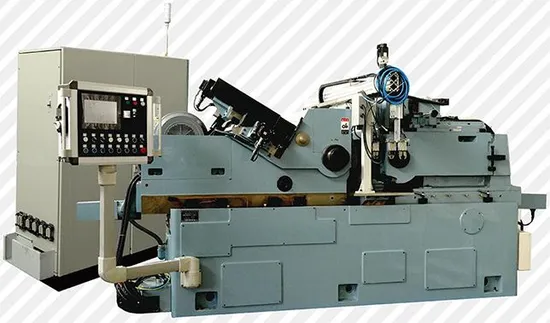

Diameter 10-250 mm CNC Centerless Grinding Machine

Product Description

Machine tool characteristics
Machine tool characteristics 1. This machine tool is suitable for grinding cylindrical surface, cone surface and a variety of forming rotary surfaces, modified design can also process some end faces, according to user needs can be refined treatment, improve a number of precision, to meet the needs of bearings, automobiles, tractors, textile machinery, motors and other industries. It can grind all kinds of bearing outer rings, needle rollers, rollers, piston pins, long bars, tubes, etc.The grinding wheel spindle adopts a double-support structure supported by double-row short cylindrical roller bearings. The constant linear speed of the grinding wheel is 45 m/s.
2. The guide wheel spindle is a new type of integral forging structure, which adopts a double-row short cylindrical roller bearing double-bearing structure.
3. The feed shaft and reciprocating shaft of the grinding wheel dresser are driven by servo motors through the reducer, and the ball screw pair is driven, which can realize the interpolation and dressing of two shafts.
4. The guide wheel dresser is manually fed, and the geared motor drives the reciprocating and can be profiled and dressed.
Machine tool parameters

Grinding diameter		φ10-φ250mm
Grinding maximum length		500mm
Grinding wheel specifications		φ660×600×φ305mm
Guide wheel specifications		φ350×600×φ203mm
Maximum working linear speed of grinding wheel		35 m/s
Grinding wheel speed		1330r/min
Guide wheel speed		12-200r/min
Minimum feed of grinding wheel frame		0.001mm
Motor power of grinding wheel		27(35)kw
Guide wheel rotation angle	In vertical plane	-2°~+5°
	In the horizontal plane	-4°~+5°
Distance between center line to bottom surface of bracket		290mm
Machine dimensions		4100×3500×1700mm
Machine weight		About 10 tons
