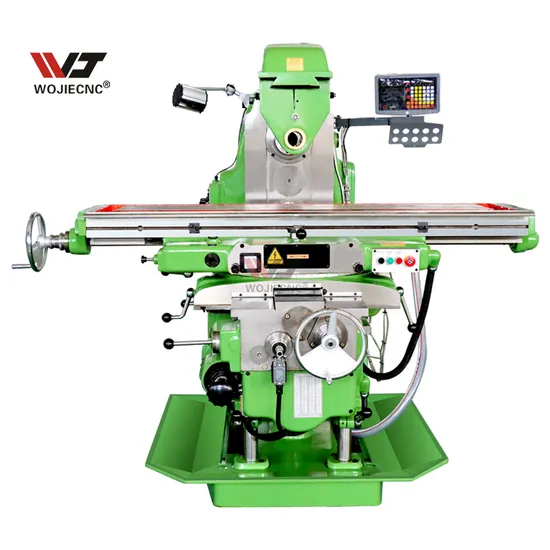

Wojie X6140 Universal Milling Machine – Manual Knee Type at Competitive Price

Product Description

Product Description
The milling machine is a kind of universal light duty metal cutting machine,Has two functions of vertical and horizontal milling,Milling medium, small parts of the plane, inclined plane, groove and spline etc.. Widely used in mechanical processing, mold,equipment, instrumentation and other industries.
Product Parameters

Specifications	Unit	X6140
Table size	mm	1700x400
Table load capacity	kg	800
Table travel distance	mm	3-18-90
T-slot (number-width-spacing)	-	900/880 315/300 350/330
Rapid traverse rate of table	mm/min	XY:2300 z:770
Feed range of table	mm/min	XY:23.5-1180 Z:8-394
Spindle taper	-	ISO50 7:24
Spindle speed range	rpm	30-1500(18)
Rotation angle of vertical milling head	°	±45
Distance from spindle nose to worktable surface	mm	30-380
Main motor power	kw	11
Feed motor power	kw	1.5
Weight	kg	3950/4200
Dimensions	mm	2560x2160x2100

Detailed Photos
ZAOZHUANG WOJIE CNC MACHINERY Co., LTD. has:
More than 60,000m² of the factory with more than 150 workers. Strictly QC control with more than 24 steps testing processes 30+ years CNC machine manufacture experience factory 24 hours online service at any time Trade with customers in more than 150 countries around the word. Cooperate with the Famous Brand, such as SIEMENS, FANUC, SYNTEC ect. Support ODM OEM. Warranty time is 24 months FAQ
1. What are the payment terms?
A: T/T, 30% down payment when ordering, 70% balance before shipment; irrevocable L/C at sight.
After receiving the advance payment, we will start production. After the machine is ready, we will take pictures and videos for you to inspect the machine. After paying the balance, we will send the machine to the designated location according to your instructions.
2. What does your company mainly produce?
A: Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC milling machines, CNC lathes for machining centers, ordinary milling machines, ordinary lathes, hydraulic presses, etc.
3. When is the delivery time?
A: If the machine you ordered is a standard machine, we can prepare the machine within 15 days. If it is some special machines, the delivery time is about 30 days. Some machine models will be in stock, please consult the salesperson for details.
4. What are your trade terms?
A: FOB, CFR, CIF, DDP, DAP, FCA, etc.
5. What is your minimum order quantity and warranty period?
A: The minimum order quantity is 1 set, and the warranty period is 2 years. But we will provide lifetime service for the machine.
6. What is the packaging of the machine?
A: The machine is placed on a metal pallet, covered with a moisture-proof coat inside, and wrapped with plywood all around.
