Lab Bobbin Yarn Dyeing Machine Deal With The Loose Cotton Wool Or Chemical Fiber And Relative Bobbin Yarn

Product Description

Product Description
Product Description

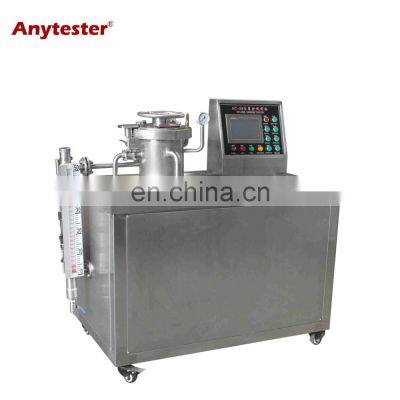

HT-3 Lab Bobbin Yarn Dyeing Machine is mainly used to carry out the dyeing, scouring, blenching and washing of loose cotton, wool or chemical fiber and relative bobbin yarn. It is also suitable to dye fabric of small-lot.
Specification

Model	HT-3
Dyeing position	1
Max. working capacity	3kg
Max. working pressure	0.4Mpa
Designed max. pressure	0.5Mpa
Max. working temperature	135℃
Designed max. temperature	140℃
Dyeing medium	Dye liquor
Liquor ratio	1:6~1:15
Dyeing cylinder size	¢200×700mm
Heating mode	Electric heating
Power supply	AC380V 50Hz, three-phase
Dimensions	1250×800×1350mm(L×W×H)

Features
★ Parts contacting with dye liquor are made of anti-corrosion stainless steel.
★ Touch screen and PLC automatically control the whole procedure with high degree of automation.
★ Dye liquor circulating mode is controlled by anti-corrosion mixed-flow pump with flow-direction-changing device to circulate the dye liquor from inside to outside or from outside to inside.
★ O-type sealing ring of silicone rubber.
★ Main dyeing cylinder with level indication, safety interlock mechanism, stainless steel safety valve and manual cover; the manual cover with safety protection; if temperature in main cylinder is more than 85℃, the manual cover can be opened.
★ Compact structure and low liquor ratio.
Packing & Delivery

Packaging
Size	1250*800*1350mm(L*W*H)
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Payment

Payment Item	T/T	EXW 30% T/T in advance, paid the balance before shipment FOB CFR(C&F) 30% T/T in advance,paid the balance against copy of B/L CIF	30% T/T in advance, paid the balance before shipment
		FOB
		CFR(C&F)	30% T/T in advance,paid the balance against copy of B/L
		CIF
	L/C	L/C amount above 50,000 usd, we can accept L/C at sight
	West Union	Amount lower than 50,000usd
Delivery Time	7~10 days after receiving payment for one container
