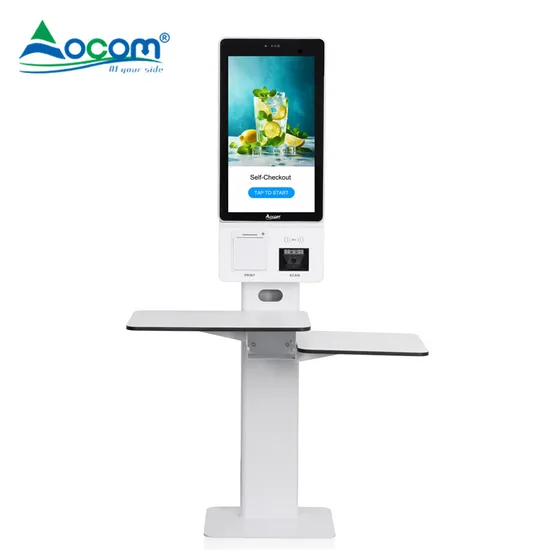

POS-K004 OCOM 21.5 Inch Windows/Android with 2D Scanner and 80mm Thermal Printer Self-Service POS System
Basic Info.
Model NO.
POS-K004
Application
Food Service System
Screen Type
Capacitive
Customized
Customized
Housing
Plastic with Metal Combined
Color
Whole White Color
Resolution
1920*1080
Color Brightness
250CD/M2
View Angle
Horizon: 178; Vertical: 178
Touch Screen
10-Point Projected G+G Capacitive Touch
Speaker
Built in 8ohm/10watt Speakers
Operating System
Windows10/11/Android 11
Light Source
Light Sourcetillumination:617nm Red LED
Power Supply
5V DC
Stand and Table
Stand and Table for Option
Transport Package
Wooden Box
Specification
98*27*52cm/15.5*48*52cm
Trademark
OEM/ODM/OCOM
Origin
China
HS Code
8470501000
Production Capacity
100000
Packaging & Delivery
Package Size
98.00cm * 27.00cm * 52.00cm
Package Gross Weight
21.000kg
Product Description
Features: 21.5 inch 1920*1080 high resolution IPS screen Standard a high-sensitivity large window 1D&2D scanning platform , which can easily scan commodity codes and payment barcodes Standard 80MM high-speed receipt printer, including automatic cutterSupport wall-mounting and standing aloneBuilt-in 8 ohm high-power speaker, making payment tips and, advertisements louder Self-checkout table, NFC module, face recognition for option| Model | POS-K004-W | POS-K004-A | |
| Name | 21.5 inch all in one touch screen kiosk | ||
| Housing | Plastic with metal combined | ||
| Color | Whole white color | ||
| Display | |||
| Main screen size | 21.5 inch touch screen monitor | 21.5 inch touch screen monitor | |
| Resolution | 1920*1080 | 1920*1080 | |
| Color brightness | 250cd/m2 | ||
| View angle | Horizon: 178; Vertical: 178 | ||
| Touch screen | 10-point projected G+G capacitive touch | ||
| Performance | |||
| Motherboard | Intel Celeron J4125, 2.0GHz or Intel core I3 / I5 4th CPU for option | RK 3568 quad core, 2.0GHz CPU | |
| System Memory | 1*SO-DIMM DDR4slot, support2400mHZ,4GB | On board 2GB DDR4 | |
| Storage device | Msata SSD 64GB | 16GB eMMC | |
| Audio | On board Real Tek audio | On board Real Tek audio | |
| LAN | 10/100/1000Mbs, Realtek RTL8111F Lan chip | 10M/100M/1000Mbs, RTL8201F | |
| WIFI | Support 802.11 b/g | Support 802.11 b/g | |
| Speaker | Built in 8ohm/10watt speakers | ||
| Camera | Face recognition for payment (option function) | ||
| Operating System | Windows10/11 | Android 11 | |
| Connectivity | |||
| External I/O port(J4125/RK3568) | Power switch*1 for machine, power button*1 for POS motherboard | ||
| 100V-240V 50HZ/60HZ AC power Socket*1 | |||
| USB*2 | |||
| LAN:RJ-45*1 | |||
| Lock*1 for machine security | |||
| Scanning platform | package | ||
| Light Source | Illumination:617nm red LED | ||
| Power supply | 5V DC | ||
| Support 1D | UPC,EAN, Code128, Code 39,Code 93, Code11, Interleaved 2 of 5, Matrix 2 of 5, Codabar, MSI Plessey,GS1 DataBar,China Postal,Korean Postal, etc.... | ||
| Support 2D | PDF417,Micro PDF417,Data Matrix,Maxicode,QR Code,Micro QR,Aztec,Hanxin, etc...... | ||
| Barcode precision | 4 mil code39 | ||
| Barcode Sensitivity | Pitch:±60°@ 0°Roll and 0°Skew Roll:±360°@ 0°Pitchand0°Skew Skew:±65°@ 0°Roll and 0°Pitch | ||
| Prompt Mode | Buzzer | ||
| Interface | USB | ||
| Printer | |||
| 80mm thermal printer | Direct thermal printing | ||
| 150mm/s printing speed | |||
| 79.5-/+ 0.5mm paper width and printable width 72mm | |||
| Auto cutter function | |||
| Power DC 24V | |||
| Resolution 203DPI | |||
| Package | |||
| Host POS weight | 15kg | ||
| Host POS box weight | 20kg | ||
| Host POS box size | 960*250*490mm | ||
| Stand (stand+table)carton size | 1350*460*500mm | ||
| Stand weight | 16.7kg | ||
| Stand box weight | 22.5kg | ||
| Stand+metal plate weight | 30.7kg | ||
| Stand+metal plate box weight | 36.2kg | ||
| Environment | |||
| Operating temperature | 0 to 40 degrees centigrade | ||
| Storage temperature | -10 to 60 degrees centigrade | ||
| Working humidity | 10%~80% No condensation | ||
| Storage humidity | 10%~90% No condensation | ||
| Accessories | |||
| Power cable | Power cable plug compatible with USA /EU / UK etc and customized available | ||
| Stand and table | Stand and table for option | ||
