Poultry Equipment Feeding and Drinking Line System Lifiting Winch in Chicken Cage

Product Description

Poultry Farm Equipment Feeding and Drinking Line System Line Lifiting winch in Chicken Cage
Spareparts in Automatic Poultry Equipment
Product Description
We supply all kinds of winch for poultry house, with very good material and technicals, our products are very popular in European and American markets. If you want to know more details about our products, please send us your questions by email or call us, we'll give you our prompt reply.
Product details as the follows:

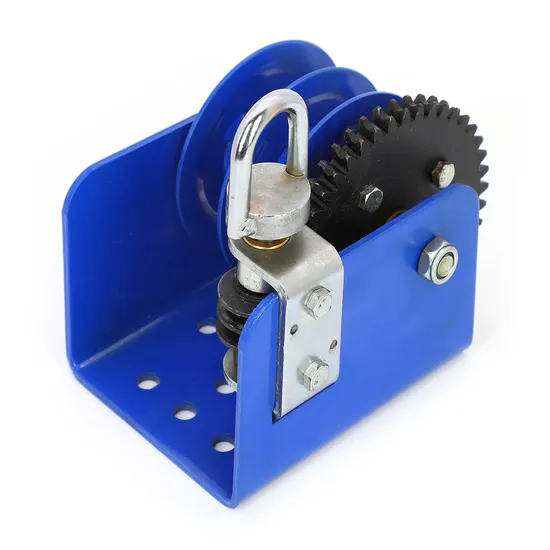

Lifiting winch in Chicken Cage
Model No.			H-1200A
Decription
SIZE(L×W×H)(mm)			205×125×148
			1200
Capacity(Lbs)			104
Lift per crank rotation(mm)			30
Hand force required(Lbs)			4.1:1
Cear rotation			Φ33
Hub diameter(mm)			175
Handle Length(mm)			-
strap(WxT mm)			-
capacity for rope (m)			2.6
Unit weight(Kg)
Gross weight(Kg)			21/8pcs
		Φ3mm	59
Rope storage(m)		Φ4mm	32
		Φ5mm	17
pull	last(N)		1630
(Φ5)	Last pull (Lbs)		359
	middle(N)		2590
	Middle pull (Lbs)		570
	first(N)		5334
	First layer cable pull (Lbs)		1200

H-2000 Worm Gear Winch, 2000lb.
Model No.			H-2000
Cable/Strap Optional			Single or Split
Certificate			CE/GS
SIZE(L×W×H)(mm)			185×149
			×188
Capacity(Lbs)			2000
Lift per crank rotation(mm)			133
Hand force required(Lbs)			-
Cear rotation			41:01:00
Hub diameter(mm)			Φ42.5
Handle Length(mm)			-
strap(WxT mm)			24×2
capacity for rope (m)			4
Unit weight(Kg)			5
Gross weight(Kg)			10.5
			/2pcs
Rope storage(m)		Φ3mm	-
		Φ4mm	-
		Φ5mm	11
pull (Φ5)	last(N)		4320
	Last pull (Lbs)		950
	middle(N)		5600
	Middle pull (Lbs)		1232
	first(N)		8891
	First layer cable pull (Lbs)		2000

H-3500 Powerlift Ceiling Winch, 3500lb
Single Drum
Model No.			H-3500
Certificate			CE/GS
SIZE(L×W×H)(mm)			331×222
			×216
Capacity(Lbs)			3500
Lift per crank rotation(mm)			289
Hand force required(Lbs)			-
Cear rotation			41.46
Hub diameter(mm)			Φ92
Handle Length(mm)			-
strap(WxT mm)
capacity for rope (m)
Unit weight(Kg)			16.7
Gross weight(Kg)			17.2
			/1pcs
Rope storage(m)		Φ3mm	-
		Φ4mm	-
		Φ5mm	14
pull (Φ5)	last(N)		12239
	Last pull (Lbs)		2693
	middle(N)		13383
	Middle pull (Lbs)		2944
	first(N)		15558
	First layer cable pull (Lbs)		3500

H-1100A Hand Winch, 1100lb.
Cable/Strap Optional,
Certificate			CE/GS
Model No.			H-1100A
SIZE(L×W×H)(mm)			160×132×136
			1100
Capacity(Lbs)			133
Lift per crank rotation(mm)			37
Hand force required(Lbs)			3.87:1
Cear rotation			Φ42.5
Hub diameter(mm)			175
Handle Length(mm)			-
strap(WxT mm)			-
capacity for rope (m)			2.35
Unit weight(Kg)			24/10pcs
Gross weight(Kg)			2.4
		Φ3mm	56
Rope storage(m)		Φ4mm	26
		Φ5mm	15
pull	last(N)		2133
(Φ5)	Last pull (Lbs)		469
	middle(N)		3081
	Middle pull (Lbs)		678
	first(N)		4890
	First layer cable pull (Lbs)		1100

H-3000 Ceiling Winch, 3000lb
Single Drum, Dust-Free Cover Optional
CE/GS Approved and Certified
			H-3000
SIZE(L×W×H)(mm)			326×200
			×214
Capacity(Lbs)			3000
Lift per crank rotation(mm)			279
Hand force required(Lbs)			-
Cear rotation			38.7:1
Hub diameter(mm)			Φ88
Handle Length(mm)			-
strap(WxT mm)
capacity for rope (m)
Unit weight(Kg)			18
Gross weight(Kg)			18.5
			/1pcs
Rope storage(m)		Φ3mm	-
		Φ4mm	-
		Φ5mm	13.6
pull (Φ5)	(N)		10389
	Last pull (Lbs)		2286
	(N)		11398
	Middle pull (Lbs)		2508
	(N)		13336
	First layer cable pull (Lbs)		3000

H-2500 Winch, 2500lbs
description			H-2500A
SIZE(L×W×H)(mm)			240×180×198
			2500
Capacity(Lbs)			96
Lift per crank rotation(mm)			13
Hand force required(Lbs)			13.12:1
Cear rotation			Φ30.6
Hub diameter(mm)			244
Handle Length(mm)			-
strap(WxT mm)			-
capacity for rope (m)			6.6
Unit weight(Kg)			14/2pcs
Gross weight(Kg)
		Φ3mm	-
Rope storage(m)		Φ4mm	-
		Φ5mm	30
pull	last(N)		1707
(Φ5)	Last pull (Lbs)		376
	middle(N)		4500
	Middle pull (Lbs)		990
	first(N)		11113
	First layer cable pull (Lbs)		2500

Other spare parts:

Number	Name	Model	Picture
1	bracket	H-1200
2	winch	H-1200
3	winch	H-1500
4	winch	H-3000
5	winch	H-3500
6	baseplate	H-3500
7	nylon pulley	22mm
8	nylon pulley	45mm
9	support pulley	90mm
10	cast iron pulley	90mm
11	cast iron pulley	105mm
12	pipe clamp	45mm
13	adjustment plate	3.5"
14	feed pipe hook	45mm
15	winch bar	1.2m
16	transition pulley	90mm
17	winch	H-1500-1
18	Shook	2.25
19	rope clamp	*
20	winch	for cage system
21	pulley hook	*

Products we can supply

No.	Product name	Related spare parts avaIlable or not
1	Main stock line system	Yes
2	feeding system	Yes
3	Nipple drinking system	Yes
4	Ventilation system	Yes
5	Cooling pad system	Yes
6	Environment control system	Yes
7	Spraying system	Yes
8	Spraying accessories	Yes
9	Heating system	Yes
10	Swine/pig poutry equipment	Yes

Our services
1. Site selection of standardization chicken farm.
2. chicken house design.3. Construction guidance.4. Breeding worker training.5. On site technology instruction.
6. Lifetime technical support

Our Advantages
Advantages to use our automatic poultry equipment :1. Time saving2. Labour saving3. Increasing chicken living rate.4. High quality to ensure non stopping running of your house.5. Comparatively cheap price
Company Profile
Weifang G-Repu Imp. & Exp. Co., Ltd is a much experienced trading company which founded in 2017. Our main business is chicken farm equipment, such as pan feeding system, nipple drinking system, environment control system etc...Now our business already extended to swine equipments, we can supply turn-key project, also can supply relevant accessories seperately, like farrowing cages, sow pen, cast iron floor, plastic floor, chain feeder etc. Our product & service have received high praise and recognition from all customers.
After many years development in farm equipment business, and based on our clients' supporting, we built our own factory in Qingdao, China. Our main products of the factory include pan feeder pipe, supporting pipe for nipple drinking line, clamps for feeder pipe and farrowing cage, sow pen, cast iron floor & other steel accessories for chicken farm & swine farm. Our trading company lies in Weifang, Shandong, China and our factory locates in Qingdao, China. It's very convenient for us to collect all materials and arrange shipment from Weifang & Qinigdao.Making WIN-WIN business is always our company first important rules and goals, we will do our best to service for all of our business and we trust we can do all business very well.If you have any inquiry for chicken farm and swine farm, please let us know your requirements, we will make our best offer to you immediately.Let us work together to achieve our COMMON GOALS!We are keep on waiting for your inquiry and your coming at all the time!
FAQ
1. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment.2. Why should u buy from us not from other suppliers? We are professional supplier of poultry equipment, we have exported to different countries for many years.
Our quality is competitive with USA and EU. Our feed pan, feed pipe, Nipples (Same quality as "Lubing" brand ), and other
spare parts are best quality in China market.
Our clients never take any complaint from customers, we are real " ZERO" complaint. We ensuring the rights and interests of consumers, selling with integrity, and producing high-quality products.4. Do you accept sample order or small order?
Yes, we supply sample order for customer as well.
5. Do your sample is free or not?
Sample we can supply free of charge, the courier cost will bear by yourself.
When you place order, we can reduce this cost from payment.
6. Can we have our logo on the product?
Absolutely! As long as ordered quantity meets and provide us with your drawing, we are able to place your logo on the product. 7. Can we place order fromthis link directly? Yes, no problem.
Price of this link just for customers reference, welcome contact us for further specifications and detailed price list!
