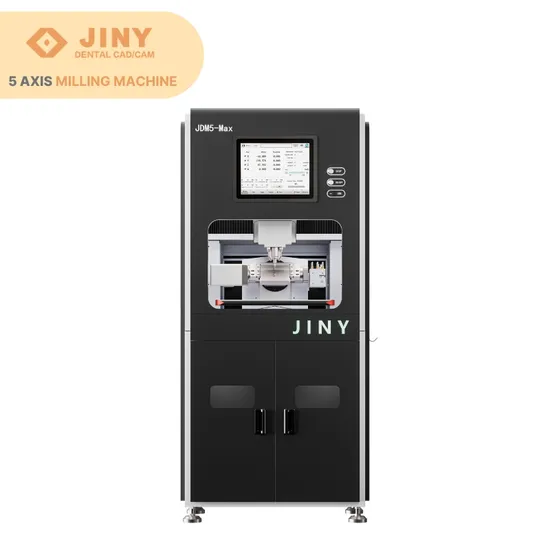

Dental CAD Cam 5 Axis Titanium Milling Machine for Implant Bridge

Product Description

Product Name	JDM5MAX 5-Axis CAD/Cam Monolithic Dental Milling Machine
Processing methods	Wet milling
Max Power	2.5 KW
Main axis speed	60000 rpm
Cooling Type	Air Cooling
Rotating axis working range	Milling Range: A: 360° ±90° B: ±45°
Tool Capacity	18 pcs automatic tool change
Input voltage	AC 100~235V,50~60Hz
Milling Range	A: 360° ±90° B: ±45°
Production	10-20min/Piece
Space Style	Desktop
Processing material	Abutment, implant bridge, implant bar, titanium crown. (Optionally add milling glass ceramic function)
Product type	Crowns, inlays, all-ceramic crowns, bridges, oxide abutments, all-ceramic crowns
Material size	98mm*10mm to 98mm*25mm
Machine dimensions	860*870*1800 (mm)
Weight	1200kg

Guided CAD/CAM production and maintenanceCAD/CAM production and maintenance have never been easier. The Ceramill Motion 3 combines maximum user-friendliness and process reliability due to HMI and RFID technology. With an intuitive interface and sophisticated tracking technology, the machine guides you intelligently through the processes. This allows you focus on essential things and saves time, money and nerves.
Analytics in Motion
Owing to the integrated analysis functions via AG.Live, you are able to continuously optimize capacity and resource management and fully gear the use of the Ceramill Motion 3 to efficiency, quality and customer satisfaction.
Excellence in quality and diversity
Never has a single machine offered so much motion! The Ceramill Motion 3 is ready for any indication and enables fully automated dental arch restorations of the highest quality due to innovative carving and sculpturing technology (C-Clamp) in the accustomed Motion quality. https://jiny2016.en.made-in-china.com/product/rxnRuHIMFYkT/China-CAD-Cam-Dental-Milling-Machine-Dental-Equipment-for-Zirconia-5-Axis-Milling-Machine.html
