New Full-Automatic Paper Element Oil Air Filter Full Auto Knife Pleating Machine

Product Description

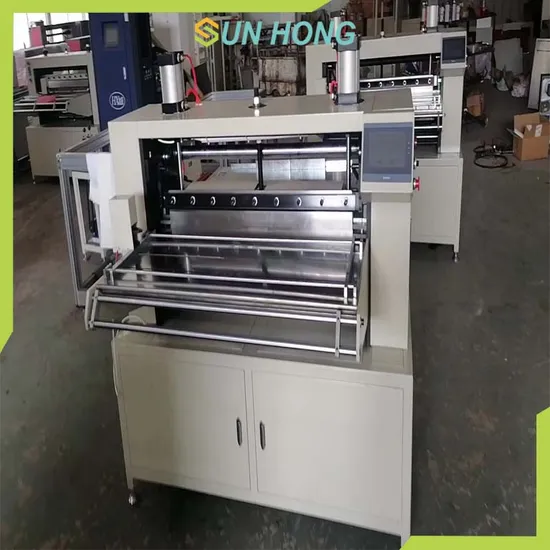

Full Auto High Quality Pleating Machine
Product Description
Auto Knife Pleating Machine is an important equipment for producing filter element. It suitable for folding 8-100mm filter material.It simplifies the function setting.operation and maintenance to the greatest extent through the menu
graphicinterface,with higher reliability Versatility and flexibility.This machine can automatically adjust the folding height, and can change the angle of the knife according to the thickness of different filter materials without damaging the filter materials. Application
1.The production line is applicable to automobile three filter industry, hydraulic industry, purification industry, water treatment and other industries.
2.The machine can pleating :filter paper,wiresh ,window screen,cardboard, synthetic,
copper,aluminum,metalli foils and so on. Product Parameters

Product capacity	20-35pcs
Diameter of center tube	30-75mm
Length of center to be processed	freely
Steel-plate thickness	0.25-0.32mm
Motor power	3kw
Power supply	380V/50HZ
Working air pressure	0.6Mpa
M/C weight	800KG
M/C size	1600 × 800 × 1240mm (L × W × H)
