High Performance Industrial Spray Booth with Integrated Heating Recycling System
Basic Info.
Model NO.
CP-20-6
Type
Spray Booth
Certification
CCC, CE, ISO9001
Substrate
Steel
Brand
Compass
Coating
Powder Coating
Airflow Direction
Fully Undershot-type
Heating Mode
Diesel
Paint Mist Treatment
Dry-type
Condition
New
Total Power
70kw
Transport Package
Steel Frame
Specification
20 x 6 x5(m)
Trademark
COMPASS
Origin
China
HS Code
8419399090
Production Capacity
200 Sets / Month
Product Description

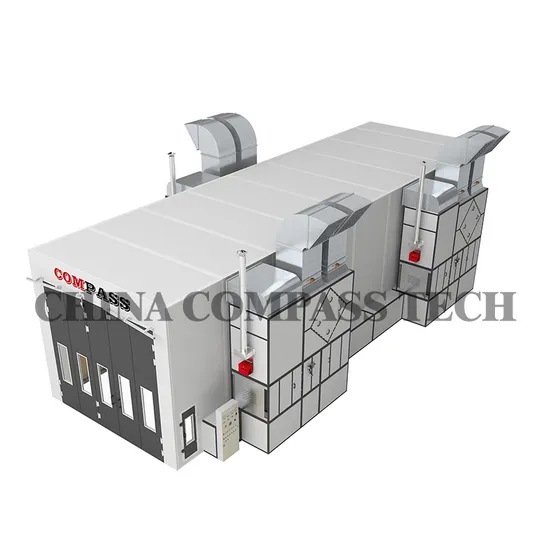

European standard bus spray booth model: CP-20-6Technical data for CP-20-6 spray booth
| Outside Dimension (mm) | 20125×9350×5600 |
| Inside Dimension(mm) | 20000×6000×5000 |
| Front Door(mm) | 5000×4700(W*H) |
| Service door(mm) | 800×2000 |
| Total Power | 70kw |
| Cabin system | |
| Front door | Four folded sheet metal door, double side with PU insulated |
| Wall panel | 75mm rock-wool sandwich panel, steel sheet thickness: 0.6mm |
| Ceiling panel | 50mm rockwool sandwich panel. |
| Basement | Cement floor by customer |
| Door glass | 5mm tempered glass |
| Air make-up system | |
| Air ventilation system quantity :Three units | |
| Air inlet fan system | 3 sets 11kw turbo fan , motor brand: Siemens motor |
| Exhausted fan system | 3 sets 11kw turbo fan , motor brand: Siemens motor |
| Air inlet capacity | 105000m3/h |
| Exhuasted capacity | 105000m3/h |
| Exhausted ducting | Four meters straight ducting and one 135 degrees elbow for each exhausted system |
| Purification system | |
| Pre-filter | G3 grade |
| Ceiling filter | 600G filter EU5 / F5 |
| Floor filter | Fiberglass filter |
| Exhausted filter | Filber glass and carbon filter |
| Heating system | |
| Heat Exchanger | SUS304 232KW stainless heating exchanger |
| Heating burner | Three sets Riello RG5S diesel oil burner(gas burner for option) |
| Heating productivity | 780000Kcal/hour |
| Spray to baking switch | Pneumatic damper |
| Chimney ducting | 4m straight chimney and one chimney hood for each air make-up system |
| heating temperature | Maximum 80ºC |
| fuel consumption | 10-16L/vehicle |
| Heating recovery system | SUS 304 meterial made for enginergy recovery and saving |
| Lighting system | |
| Material | SUS 304 meterial made for enginergy recovery and saving |
| Ceiling lighting | 30Units, each 4 *24W LED lamps. |
| Side lighting | 36Units, each 4 * 24W LED lamps. |
| Illumination | 1200LUX |
| Control system | |
| Switch controlling | Spraying & baking switch, lighting switch, timer , temperature controlling switch, emergency stop, breakdown alarm, failure alarm, pressure gauge All motors controlled by frequancy inverter. |
