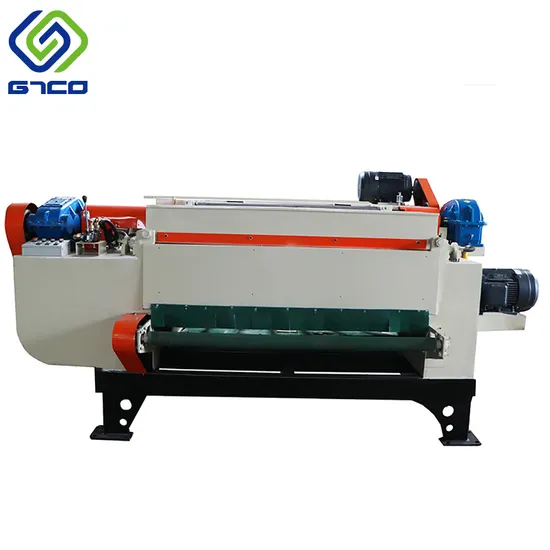

4FT Heavy Duty Wood Veneer Peeling Machine Round Log Debarker /Rounding Cutting Machine Used for Veneer Making with CE

Product Description

4FT Heavy duty Wood Veneer Peeling Machine Round Log Debarker /Rounding cutting Machine used for veneer making with CE
Product Description
Heavy-duty construction: The log debarker machine is built to withstand the rigors of daily use. It is made with high-quality materials and designed to last for many years.
Easy to use: The machine is user-friendly, with simple controls and a clear interface that allows operators to quickly and easily adjust settings and parameters.
High-speed performance: The log debarker machine can process large volumes of logs quickly and efficiently, helping to reduce labor costs and increase productivity.
Precision accuracy: The machine is designed to strip the bark from logs with a high degree of accuracy, leaving behind a smooth surface that is ready for further processing.
Low maintenance: The log debarker machine requires minimal maintenance, with easy access to all parts for cleaning and repairs.

Model	GTCO 1400/2600
Log dimension processing (D*L)	500*1400 mm
Rotary knife specification (L*W*T):	1500*140*12.7 mm
Diameter of rollers	2*200mm,1*150mm
Line speed	50m/min
Reference output	30m3/day
Hydraulic system power	5.5kw
Roller driving power	11kw,7.5kw
Total power	24kw
Feeding cylinder	800mm*2
Product dimension	4000*1600*1800 mm
Weight	3500kgs
Payment terms	T/T 30%,Balance before leave factory
Delievry time	In 20days

Technical Specifications

Max. working length	2600mm
Working diameter range	22~700mm
Max. working speed	70m/min
Veneer thickness	0.5~4mm
Double rollers motor power	11.5kw x 2sets
Single roller motor power	11kw x 2sets
Screw Feeding motor power	11kw
Rotary clipper motor power	4kw
Rubber belt conveyor motor	4kw
Machine size	6000x2200x1700mm
Machine weight	8500kgs

Detailed Photos
Packaging & Shipping
Packing and Shipping:
1. Machine body packed in plastic film
2. Spare parts and electrical parts packed in plywood boxes.
3. Fixed in container with steel wires.
Our Advantages
1. Design and produce based upon your production need. Provide full sets of drawings and manuals.
2. One year warranty for the machine. Liftetime after-sales service and maintenance.
3. Professional team for oversea machine installation&debugging.
4. Help train and guide machine operating.
We also supply the whole veneer peeling machine production line.
Our staff of sales and technical support is available to help you in selecting the right equipment for your application; Also according to the actual requirements provide solutions with clients.
1.Engineers available to service machinery overseas;
2.Warranty: 1year;
3.For the installation, seller will send the drawing for fabrication on site. Seller shall send
engineers to guide installation. Buyer shall supply all the necessary help during
installation. Air tickets and accommodation will be borned by buyer, our engineers should
be paid 100USD per day.
