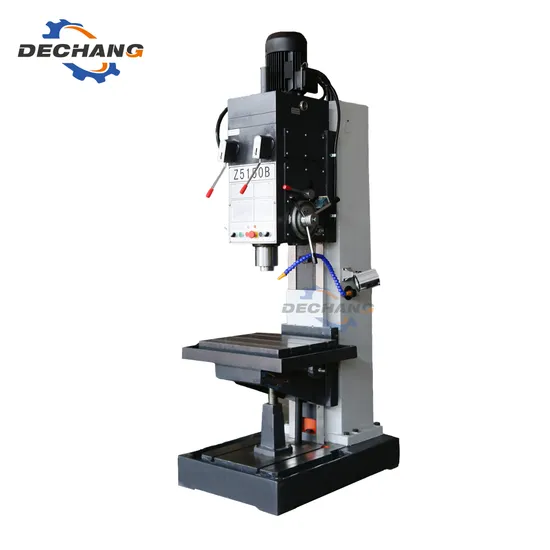

Square Column Vertical Drilling Machine Z5150 Stand Vertical Drilling Machine for Metal

Product Description

Square Column Vertical Drilling Machine Z5150 Stand Vertical Drilling Machine for Metal

Product Description
Description:
1.This vertical drilling machine is universal type machine tool. This machine is suitable for drilling, reaming, milling, drilling, boring, tapping countersunk hole etc.. Automatic reverse feed spindle tapping and fretting, for blind and deep hole is very convenient. Widely used in machinery manufacturing, workshop production and construction processing, etc..
2.This machine tool has the advantages of high efficiency, good rigidity, high precision, low noise, wide speed range, high speed operation, novel appearance, convenient maintenance and so on.
Main technical specifications:

Specifications	Unit	Z5140	Z5150
Max drilling dia	mm	40	50
Max feed resistance	N	16000	16000
Max. spindle allowable torque	N.m	350	350
Spindle taper		Morse No. 4	Morse No. 4
Distance from spindle axis to column guideway	mm	335	335
Spindle travel	mm	250	250
Spindle box travel	mm	200	200
Spindle speed	rpm	31.5-1400, 12 steps	31.5-1400,12 steps
The amount of feed(mm/rev)	Mm/r	0.056-1.80,9 steps	0.056-1.80,9 steps
Working table stroke	mm	300	300
Working table surface size	mm	560x480	560x480
Distance from spindle nose to table surface	mm	750	750
Main motor power	kw	3	3
Overall dimension	mm	1050*710*2540mm	1050*710*2540mm
N/W	kg	1200	1300
