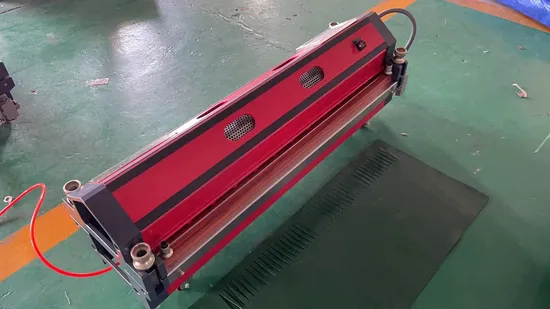

Air Cooling Hot Splicing Press for PVC/PU Conveyor Belt 900
Basic Info.
Model NO.
PA900
Certification
CE
Condition
New
Customized
Customized
Automatic Grade
Semiautomatic
Structure
Horizontal
Heating Time
20-30 Minutes
Cooling Time
20-30 Minutes
Vulcanization
1-2 Hours
Transport Package
Standard Export
Specification
As Equipment Size
Trademark
ANTAI THEMAX
Origin
China
HS Code
84778000
Production Capacity
200sets/Month
Product Description
Air Cooling Hot Splicing Press for PVC/PU Conveyor Belt 900| A=length of platen along the belt B=width of platen across the belt on the bias C=Right angle dimension across the belt, plus edge overlap. D=Bias angle (0°/18°/20°/22°…..ect) E=Max Splice length |
| Specifications of ZLJ series Belt Joint Vulcanizing Machine | D=22 degree | |||||||
| Model Number | Max Belt width(mm) | Max Splice Length Width E(mm) | Press Dimensions | Power (kw) | Weight(kg) | |||
| A(mm) | C(mm) | B(mm) | External dimension (LxWxH)(mm) | |||||
| ZLJ-800 | 800 | 500 | 535 | 940 | 1020 | 1280x730x630 | 7.1 | 380 |
| 800 | 670 | 707 | 940 | 1020 | 1280x900x630 | 9.6 | 410 | |
| 800 | 750 | 790 | 940 | 1020 | 1280x980x630 | 10.7 | 420 | |
| 800 | 830 | 872 | 940 | 1020 | 1280x1050x630 | 11.9 | 460 | |
| 800 | 1000 | 1045 | 940 | 1020 | 1280x1220x630 | 14.3 | 490 | |
| ZLJ-1000 | 1000 | 500 | 535 | 1140 | 1220 | 1480x730x630 | 8.5 | 420 |
| 1000 | 670 | 707 | 1140 | 1220 | 1480x900x630 | 11.4 | 500 | |
| 1000 | 750 | 790 | 1140 | 1220 | 1480x980x630 | 12.8 | 520 | |
| 1000 | 830 | 872 | 1140 | 1220 | 1480x1050x630 | 14.2 | 550 | |
| 1000 | 1000 | 1045 | 1140 | 1220 | 1480x1220x630 | 17.1 | 590 | |
| ZLJ-1200 | 1200 | 500 | 535 | 1340 | 1420 | 1680x730x630 | 9.9 | 510 |
| 1200 | 670 | 707 | 1340 | 1420 | 1680x900x630 | 13.3 | 550 | |
| 1200 | 750 | 790 | 1340 | 1420 | 1680x980x630 | 14.9 | 590 | |
| 1200 | 830 | 872 | 1340 | 1420 | 1680x1050x630 | 16.5 | 610 | |
| 1200 | 1000 | 1045 | 1340 | 1420 | 1680x1220x630 | 19.1 | 650 | |
| ZLJ-1400 | 1400 | 500 | 535 | 1540 | 1620 | 1880x730x730 | 11.3 | 690 |
| 1400 | 670 | 707 | 1540 | 1620 | 1880x900x730 | 15.2 | 720 | |
| 1400 | 750 | 790 | 1540 | 1620 | 1880x980x730 | 17.0 | 750 | |
| 1400 | 830 | 872 | 1540 | 1620 | 1880x1050x730 | 18.8 | 780 | |
| 1400 | 1000 | 1045 | 1540 | 1620 | 1880x1220x730 | 22.7 | 850 | |
| ZLJ-1600 | 1600 | 500 | 535 | 1740 | 1820 | 2080x730x730 | 12.7 | 830 |
| 1600 | 670 | 707 | 1740 | 1820 | 2080x900x730 | 17.1 | 880 | |
| 1600 | 750 | 790 | 1740 | 1820 | 2080x980x730 | 19.1 | 920 | |
| 1600 | 830 | 872 | 1740 | 1820 | 2080x1050x730 | 21.2 | 940 | |
| 1600 | 1000 | 1045 | 1740 | 1820 | 2080x1220x730 | 25.5 | 1010 | |
| ZLJ-1800 | 1800 | 500 | 535 | 1940 | 2020 | 2280x730x730 | 14.1 | 880 |
| 1800 | 670 | 707 | 1940 | 2020 | 2280x900x730 | 19.0 | 920 | |
| 1800 | 750 | 790 | 1940 | 2020 | 2280x980x730 | 21.2 | 950 | |
| 1800 | 830 | 872 | 1940 | 2020 | 2280x1050x730 | 23.5 | 1050 | |
| 1800 | 1000 | 1045 | 1940 | 2020 | 2280x1220x730 | 28.3 | 1150 | |
| ZLJ-2000 | 2000 | 500 | 535 | 2140 | 2220 | 2480x730x820 | 15.5 | 920 |
| 2000 | 670 | 707 | 2140 | 2220 | 2480x900x820 | 20.8 | 1060 | |
| 2000 | 750 | 790 | 2140 | 2220 | 2480x980x820 | 23.3 | 1130 | |
| 2000 | 830 | 872 | 2140 | 2220 | 2480x1050x820 | 25.8 | 1240 | |
| 2000 | 1000 | 1045 | 2140 | 2220 | 2480x1220x820 | 31.1 | 1370 | |
| ZLJ-2200 | 2200 | 500 | 535 | 2340 | 2420 | 2680x730x820 | 16.9 | 1020 |
| 2200 | 670 | 707 | 2340 | 2420 | 2680x900x820 | 22.7 | 1190 | |
| 2200 | 750 | 790 | 2340 | 2420 | 2680x980x820 | 25.4 | 1310 | |
| 2200 | 830 | 872 | 2340 | 2420 | 2680x1050x820 | 28.1 | 1460 | |
| 2200 | 1000 | 1045 | 2340 | 2420 | 2680x1220x820 | 33.9 | 1590 | |
(IV) Quality assurance:
1. 12 months warranty for whoke machine and spare parts.
2. Using fancy quality parts.
3. Demo running the vulcanizer before delivery, to find out any potential fault.
Our Service:
1. Quick reponse, for any of your inquiry, we will reply you within 24 hour.
2. Our well-tranied college provide sales and after-sale services who can speak English and discuss with you using your local language.
3. We offer OEM service. Your logo can be print on belt hot splicing press, you also can customize the retail box.
4. We have rich experience in this rubber belt hot splice firld, and an do R&D work foryou.
5. Normal model can be produced within 10 day. Fastest than ever.
