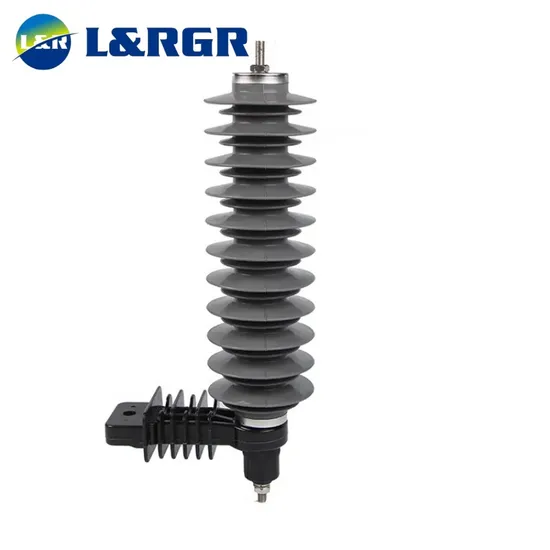

33kv Polymeric Zinc Oxide Gapless Surge Arrester/Lighting Arrester for Distribution

Product Description

SURGE ARRESTERSApplication:
Massive productions of surge arrester (MOA), either with porcelain or polymeric housing, are suitable in the systems of power generation, power transmission, power transformation, and power distribution under AC 220kV and below. They are mainly used to keep the amplitude of lighting impulse withstand voltage and switching impulse withstand voltage to the prescribed level.
Keystone:
Surge arrester is the most advanced over-voltage protector in the world. Its core element, metal oxide varistor (MOV).
Under the circumstance of normal operating voltage, the current through the surge arrester is just on microampere degree. When suffered from over-voltage, the surge arrester' s excellent non-linear characteristic will make the current through the surge arrester increase to several thousand amperes. And the surge arrester will be under the circulating state and release over-voltage energy so as to protecting the power transmission equipment against the damage caused by the over-voltage.
Condition of Use:
1. Ambient air temperature within the range of -40ºC to +40ºC;
2. Altitude above sea level not exceeding 2,000m;
3. Frequency of the A.C. power supply being 50Hz or 60Hz;
4. Power frequency voltage applied continuously between the terminals of the arrester not exceeding its continuous operating voltage:
5. Maximum wind speed not exceeding 35m/s:
6. The earthquake intensity not exceeding 7 degrees.
Characteristics:
-Low residual voltage
-Long protection distance
-High energy input capacity
-Stable volt-ampere characteristic even after multiple strokes
-Proof against ageing
-Explosion and shatter-resistant design
-Pollution resistant and UV-stable
-Housing resistant to rough handling
-Maintenance free
-Stable against shock and vibration
-High mechanical resistance
Technical Standard:
The technical performance of the products is in confirmed to IEC60099-4.

Main technical Parameters:

Type	Rated voltage	Maximun Continuous Operating Voltage	1/4us Lightning Current impulse	8/20us Lightning Current impulse	30/60us Switching Current impulse	2ms Rectangular current impulse withstand	4/10us High current impulse withstand
	kV	kV	kV(peak)	kV(peak)	kV(peak)	A	kA(crest)
HY5W-3	3	2.55	11.3	9	8.9	120-200	65-75
HY5W-6	6	5.1	22.6	18	16.8	120-200	65-75
HY5W-9	9	7.65	33.7	27	23.8	120-200	65-75
HY5W-10	10	8.4	36.0	30	23	120-200	65-75
HY5W-11	11	9.4	40.0	33	30	120-200	65-75
HY5W-12	12	10.2	42.2	36	27	120-200	65-75
HY5W-15	15	12.7	51.0	45	38.5	120-200	65-75
HY5W-18	18	15.3	61.5	54	46.2	120-200	65-75
HY5W-21	21	17.0	71.8	63	54.2	120-200	65-75
HY5W-24	24	19.5	82.0	72	62	120-200	65-75
HY5W-27	27	22.0	92.0	81	69.8	120-200	65-75
HY5W-30	30	24.4	102.0	90	79	120-200	65-75
HY5W-33	33	27.5	112.0	99	86.7	120-200	65-75
HY5W-36	36	29.0	123.0	108	95.4	120-200	65-75
HY5W-42	42	34.1	132.3	126	100.1	120-200	65-75

Used for 10kA Distribution Class 1:

Type	Rated voltage	Maximun Continuous Operating Voltage	1/4us Lightning Current impulse	8/20us Lightning Current impulse	30/60us Switching Current impulse	2ms Rectangular current impulse withstand	4/10us High current impulse withstand
	kV	kV	kV(peak)	kV(peak)	kV(peak)	A	kA(crest)
HY10W-3	3	2.55	11.3	9	8.9	250-400	100
HY10W-6	6	5.1	22.6	18	16.8	250-400	100
HY10W-9	9	7.65	33.7	27	23.8	250-400	100
HY10W-10	10	8.4	36.0	30	23	250-400	100
HY10W-11	11	9.4	40.0	33	30	250-400	100
HY10W-12	12	10.2	42.2	36	27	250-400	100
HY10W-15	15	12.7	51.0	45	38.5	250-400	100
HY10W-18	18	15.3	61.5	54	46.2	250-400	100
HY10W-21	21	17.0	71.8	63	54.2	250-400	100
HY10W-24	24	19.5	82.0	72	62	250-400	100
HY10W-27	27	22.0	92.0	81	69.8	250-400	100
HY10W-30	30	24.4	102.0	90	79	250-400	100
HY10W-33	33	27.5	112.0	99	86.7	250-400	100
HY10W-36	36	29.0	123.0	108	95.4	250-400	100
HY10W-42	42	34.1	133.0	126	100.1	250-400	100

Used for 10kA Distribution Class 2:

Type	Rated voltage	Maximun Continuous Operating Voltage	1/4us Lightning Current impulse	8/20us Lightning Current impulse	30/60us Switching Current impulse	2ms Rectangular current impulse withstand	4/10us High current impulse withstand
	kV	kV	kV(peak)	kV(peak)	kV(peak)	A	kA(crest)
HY10W-3	3	2.55	10	9	8	250-400	100
HY10W-6	6	5.1	20	18	16	250-400	100
HY10W-9	9	7.65	31	27	24	250-400	100
HY10W-10	10	8.4	35	30	26	250-400	100
HY10W-11	11	9.4	38	33	29	250-400	100
HY10W-12	12	10.2	41	36	32	250-400	100
HY10W-15	15	12.7	51	45	40	250-400	100
HY10W-18	18	15.3	62	54	48	250-400	100
HY10W-21	21	17.0	72	63	56	250-400	100
HY10W-24	24	19.5	82	72	64	250-400	100
HY10W-27	27	22.0	93	81	72	250-400	100
HY10W-30	30	24.4	103	90	81	250-400	100
HY10W-33	33	27.5	113	99	89	250-400	100
HY10W-36	36	29.0	124	108	97	250-400	100
HY10W-42	42	34.1	145	126	113	250-400	100

Used for 10kA Power station/Substation Class 2:

Type	Rated voltage	Maximun Continuous Operating Voltage	1/4us Lightning Current impulse	8/20us Lightning Current impulse	30/60us Switching Current impulse	2ms Rectangular current impulse withstand	4/10us High current impulse withstand
	kV	kV	kV(peak)	kV(peak)	kV(peak)	A	kV(crest)
HY10W-60	60	48	208	180	160	600-900	100
HY10W-66	66	52.8	230	198	172	600-900	100
HY10W-72	72	57.6	252	216	184	600-900	100
HY10W-78	78	62.4	274	234	196	600-900	100
HY10W-84	84	67.2	296	252	208	600-900	100
HY10W-90	90	72	318	270	220	600-900	100
HY10W-96	96	76.8	340	288	232	600-900	100
HY10W-102	102	81.6	362	306	244	600-900	100
HY10W-108	108	86.4	384	324	256	600-900	100
HY10W-120	120	96	428	360	280	600-900	100
HY10W-150	150	120	538	450	340	600-900	100
HY10W-200	200	160	720	600	440	600-900	100
